Product Description

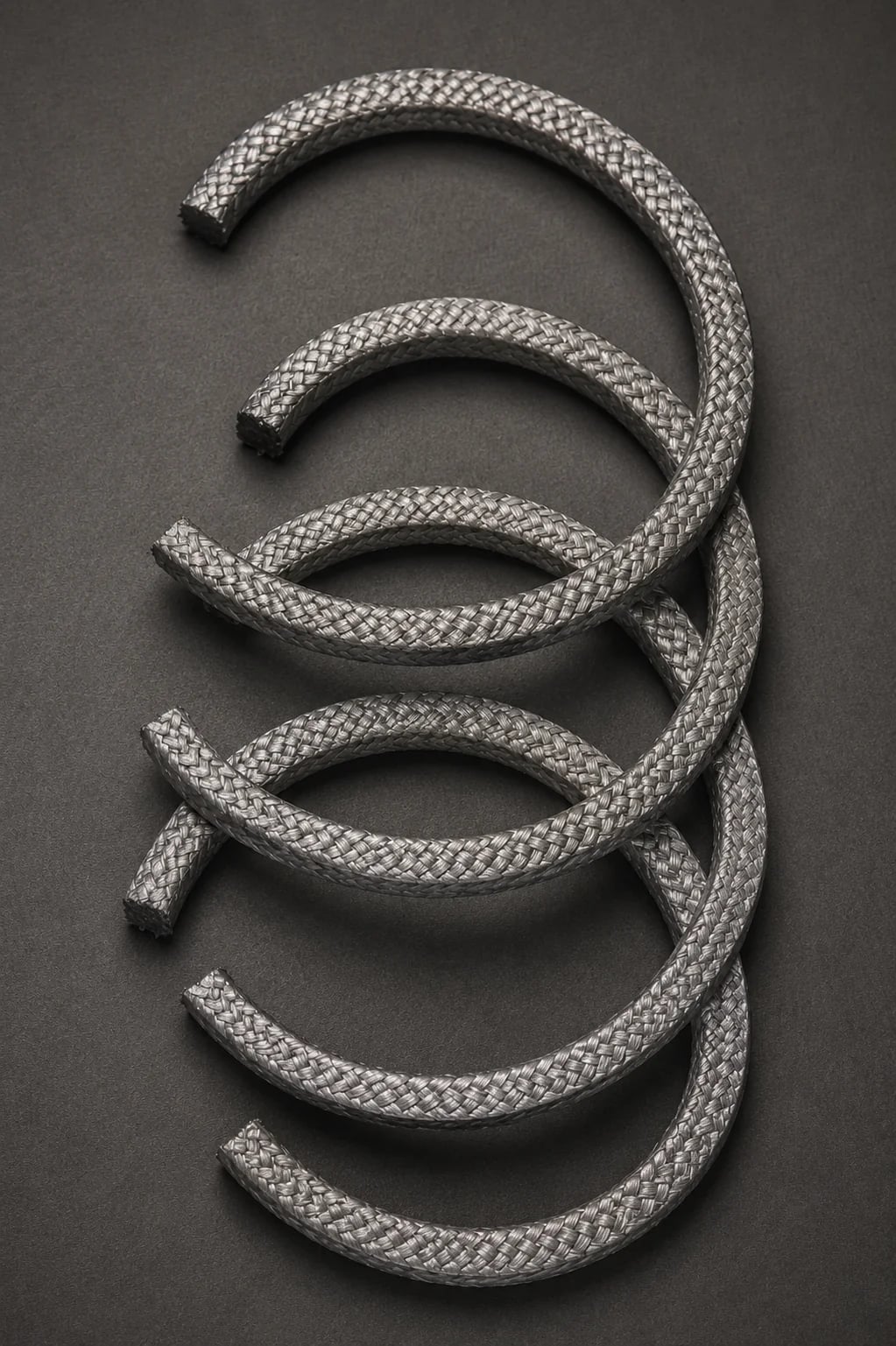

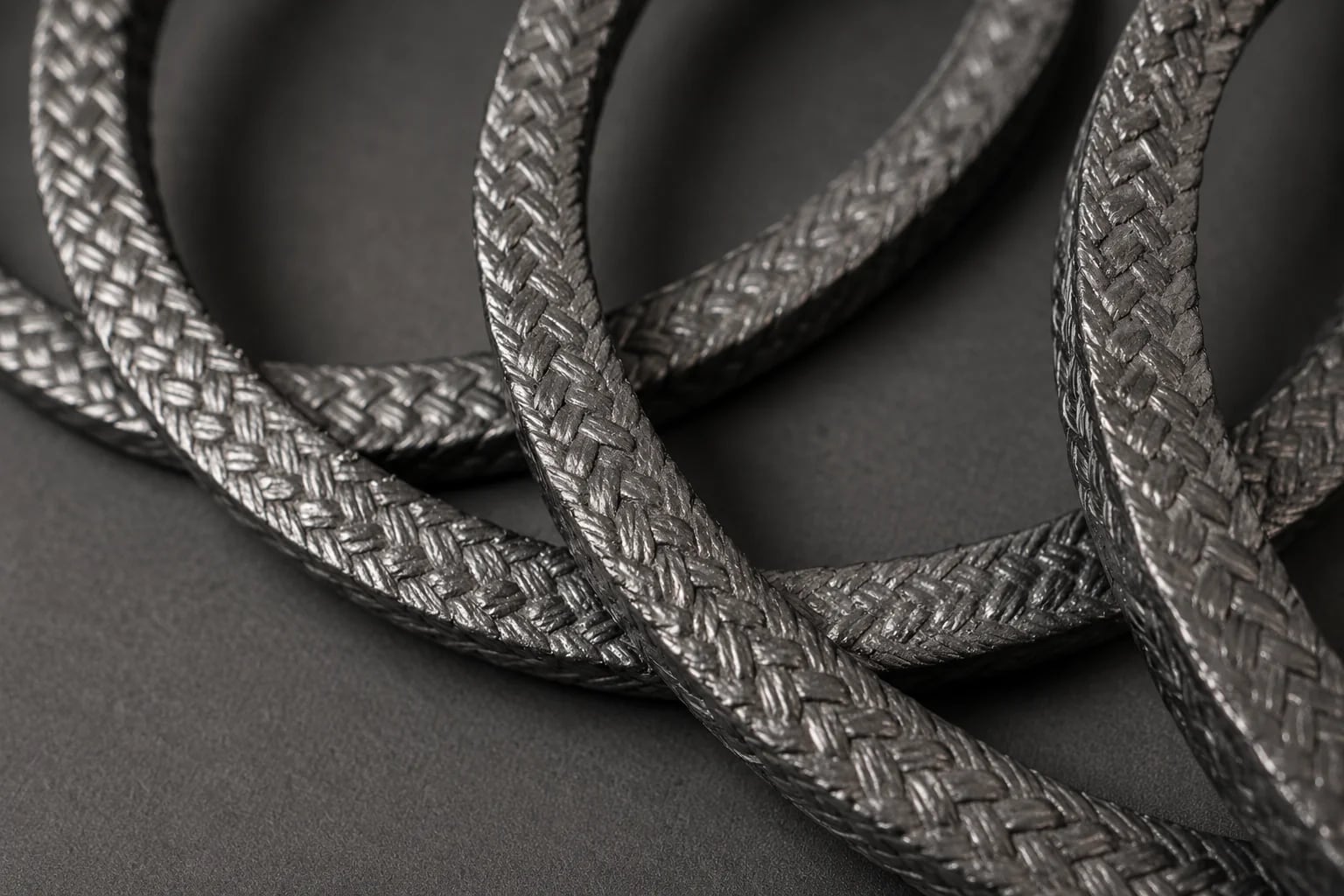

CG 100 is designed for general-purpose graphite sealing in standard industrial environments. Offers balanced performance and cost for routine sealing applications across various industries.
Quick Specifications
Temperature Range
-200°C to +650°C (2700°C in non oxidizing media)
pH Range
0 – 14
Size Range
3 mm² to 25 mm²
Temperature (°C)
-200 to +650°C (3000°C in Non-Oxidizing Media)
Technical Data
Specifications
| Equipment Type | Pressure | Velocity |
|---|---|---|
| Rotating | 35 bar | 20 m/s |
| Reciprocating | 80 bar | 10 m/s |
| Static | 100 bar | --- |
Common Specifications
Temperature Range-200°C to +650°C (2700°C in non oxidizing media)
pH Range0 – 14
Size Range3 mm² to 25 mm²
Temperature (°C)-200 to +650°C (3000°C in Non-Oxidizing Media)
Pressure (Bar)100
Velocity (m/s)20
Size3 mm² to 25 mm²
Additional Technical Data
CertificationISO 15848-1
Benefits
Key Features
Balanced performance and cost for standard industrial applications
Good thermal stability and chemical inertness
Self-lubricating properties reduce friction and wear
Minimal shaft wear characteristics extend equipment life
Wide temperature operating range for versatile applications
Use Cases
Applications
Rotary valves.
Rising stem valves.
Pumps and process equipment.
Steam service applications.
Hydrocarbon processing systems.
Chemical and petrochemical plants.
Refinery operations.
Solvent handling systems.
Acid and alkali service.
General industrial fluid sealing applications.
