Flange Joint Gaskets

Different Material sheet gaskets, providing reliable sealing solutions for flanged connections.

4 Subcategories•11 Products

Subcategory

CNAF

Compressed non-asbestos fiber sheet gaskets

NA 432

NA 432 is a premium compressed non-asbestos fiber (CNAF) gasket sheet designed for general industrial applications with excellent sealing properties. Features organic fiber construction bound with nitrile rubber for reliable performance.

Suitable for general-purpose industrial applications with organic fibers

Bound with NBR (Nitrile Butadiene Rubber) for flexibility

Excellent resistance to oils, fuels, and water

View Details →

NA 420

NA 420 is a high-quality compressed non-asbestos fiber gasket sheet for moderate temperature and pressure applications. Features mineral and aramid fiber construction for enhanced performance.

High-quality CNAF sheet with mineral and aramid fiber blend

Suitable for oils, fuels, lubricants, alcohols, and gases

Good chemical resistance across various industrial media

View Details →

NA 450

NA 450 is a premium CNAF gasket material engineered for high-temperature industrial applications. Features aramid fiber construction for superior tensile strength and thermal performance.

High-quality CNAF sheet with aramid fiber reinforcement

Enhanced temperature capability up to 250°C

Superior tensile strength and recovery properties

View Details →

NA 452 GF

NA 452 GF is designed for general equipment applications with enhanced sealing performance. Features aramid and glass fiber construction for superior high-temperature and high-stress capabilities.

High-quality CNAF sheet with aramid and glass fiber blend

Excellent high-temperature performance up to 300°C

Superior mechanical properties for demanding applications

View Details →

NA 430

NA 430 is a standard CNAF gasket material for general industrial sealing applications. Features stainless steel wire mesh reinforcement for enhanced mechanical strength and dimensional stability.

Premium metallic grade with SS wire mesh reinforcement

High-tenacity aramid fiber with organic fiber blend

Calendered for superior surface finish

View Details →

NA 442

NA 442 is a high-quality CNAF material engineered for demanding industrial sealing applications. Features carbon fiber enhancement for superior performance characteristics.

High-performance construction for demanding applications

Excellent recovery properties maintain sealing

Broad chemical resistance across diverse media

View Details →

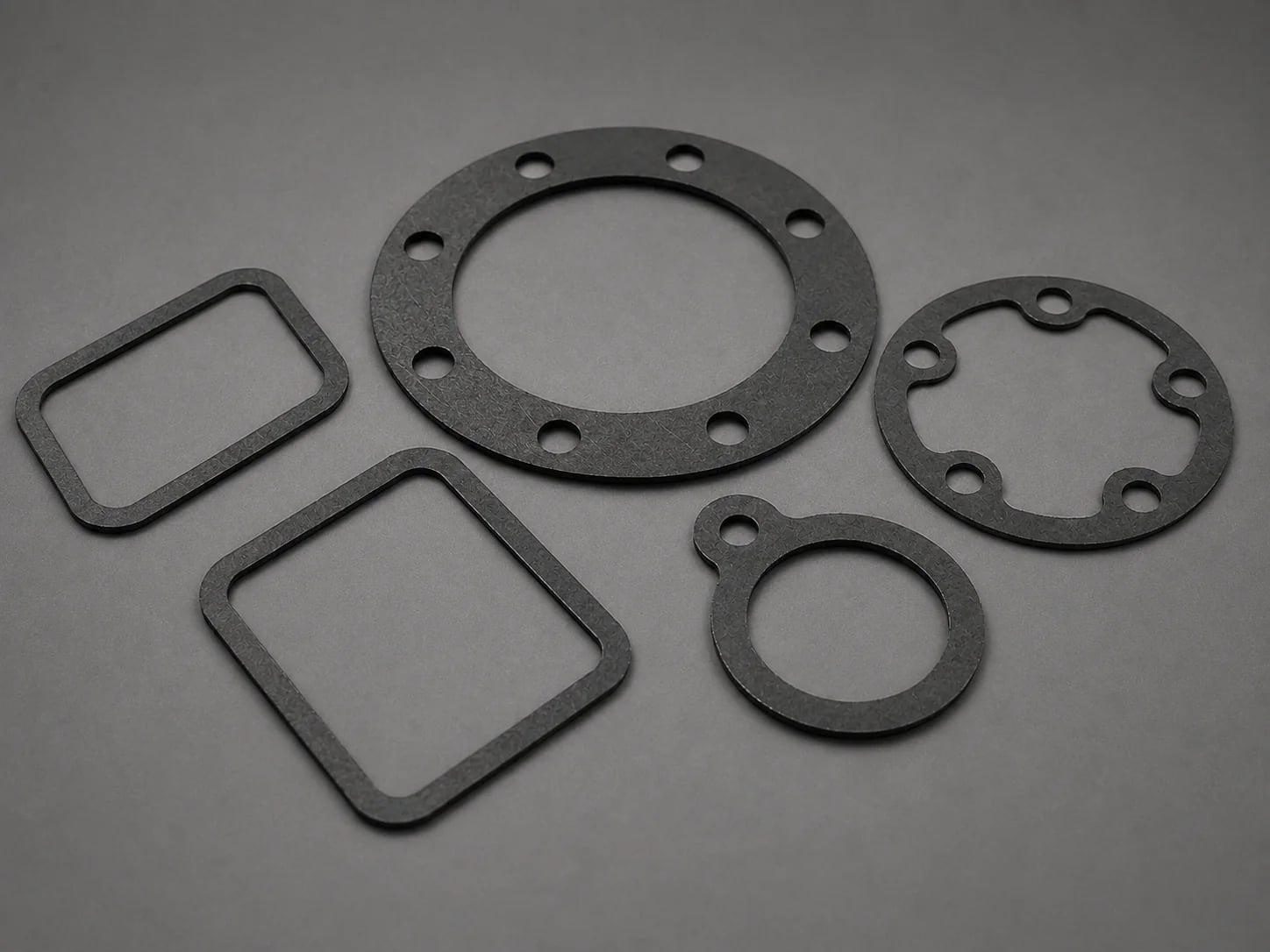

SST 323

SST 323 is a stainless steel reinforced compressed graphite sheet engineered for enhanced performance and durability. Combines the benefits of flexible graphite with stainless steel reinforcement.

Stainless steel reinforcement for superior strength

Enhanced durability in demanding applications

Excellent corrosion resistance properties

View Details →

View All CNAF

Subcategory

Graphite

Flexible graphite sheet gaskets

View All

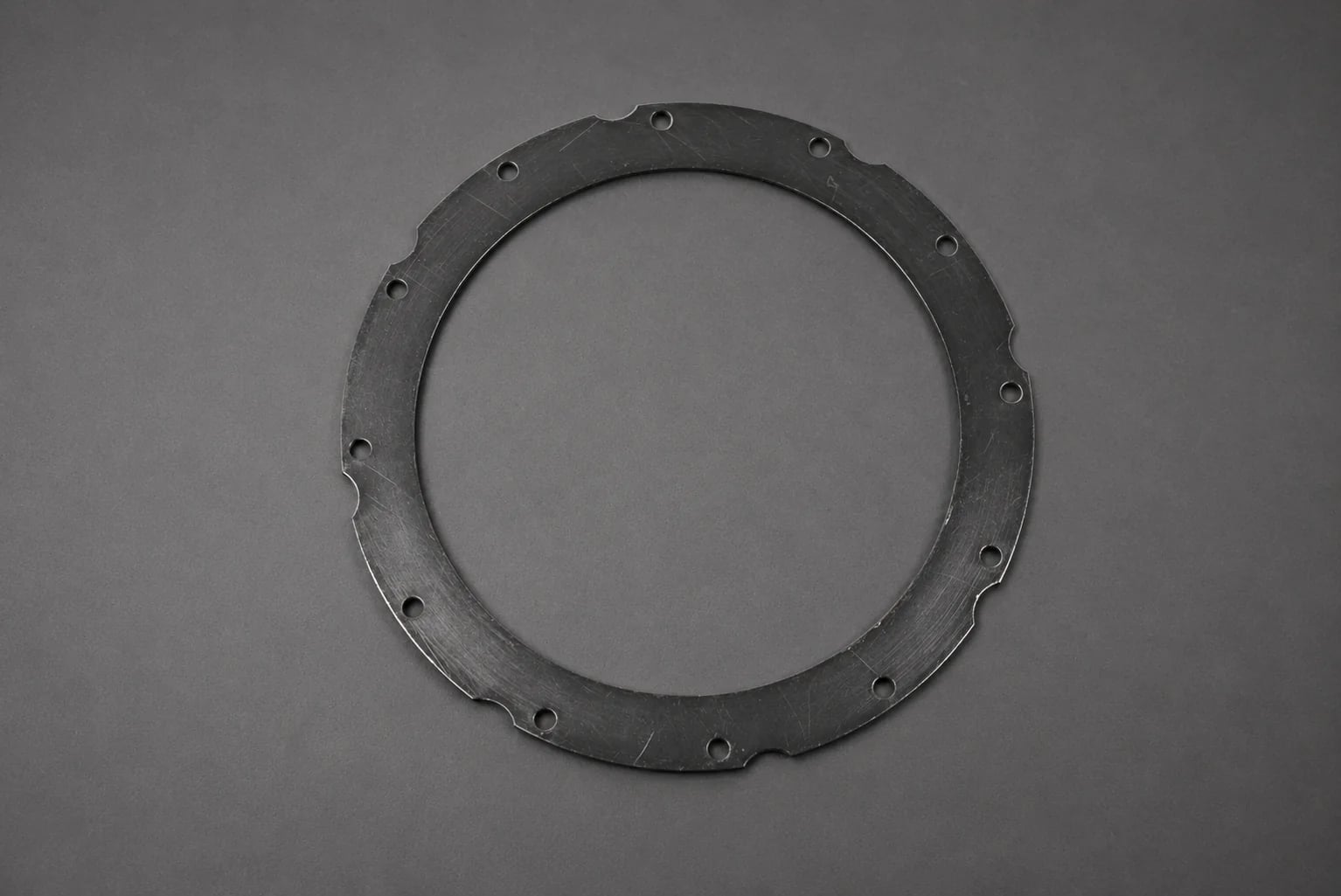

FG 320

FG 320 is manufactured from exfoliated graphite through acid treatment with 100% acids washed out by DM water. The manufacturing process is mechanical without incorporation of any additives or bonding material, resulting in flexible pure graphite sheet with carbon content 99% to 99.9%. Highly resilient and easily adapts to irregularities of flange or surface to make perfect seal. Suitable for metallic, glass, and enamel flanges, designed for trouble-free change over which ultimately reduces maintenance cost. Dimensionally stable under extreme pressure surge and suitable for cryogenic services.

Ultra-high purity with 99% to 99.9% carbon content

Extreme temperature capability from -200°C to 550°C

Highly resilient and adapts easily to surface irregularities

View Details →

SSF 321

SSF 321 sheet is manufactured from plain SS sheet sandwich between two layers of flexible pure graphite sheet. The manufacturing process is mechanical without incorporation of any additives on bonding materials. SS sheet insert graphite gaskets are suitable for metallic, glass, enamel flanges and are designed for trouble-free change over which ultimately reduces maintenance cost. Dimensionally stable under extreme pressure surge and suitable for cryogenic services.

SS foil reinforcement increases mechanical strength

Chemical properties of flexible pure graphite remain intact

Resistant to almost all non-chemicals

View Details →

View All Graphite

Subcategory

PTFE

PTFE sheet gaskets for chemical resistance

View All

600 Sintered PTFE Sheet

600-grade sintered PTFE sheet gasket offering exceptional chemical resistance and sealing performance for aggressive media. Provides universal chemical compatibility with high-purity construction.

Universal chemical resistance across all pH levels

High-purity construction for sensitive applications

Low coefficient of friction reduces wear

View Details →

View All PTFE

Subcategory

Expanded PTFE

Expanded PTFE gasket material

View All

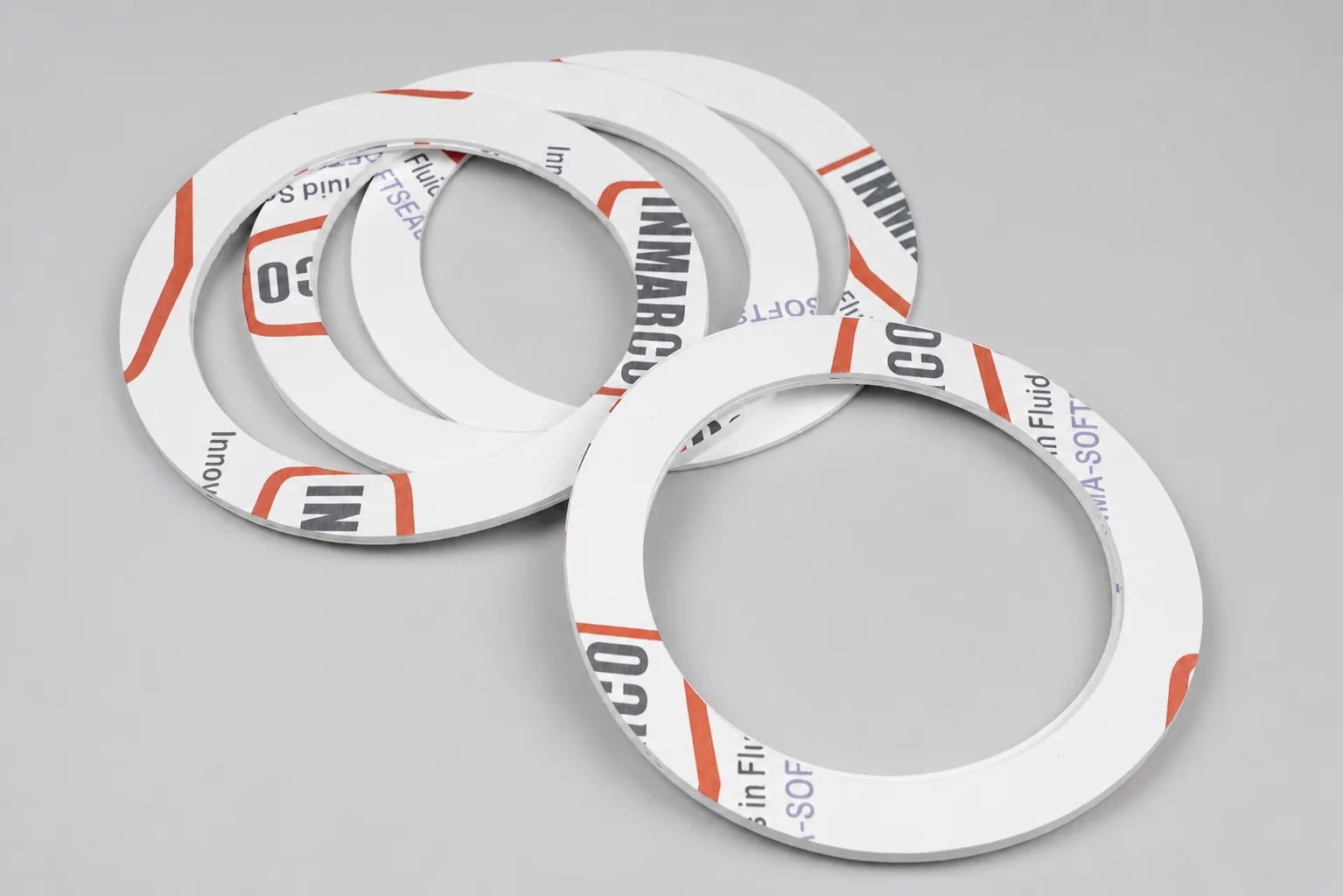

INMATEX EPTFE SHEET/GASKET

INMATEX ePTFE sheet provides superior chemical resistance and exceptional sealing performance with very low seating stress in flange joint management. Ideal for critical flanged connections requiring reliable, long-term sealing.

Universal chemical resistance across the full pH spectrum (0-14)

Excellent conformability to irregular flange surfaces

Low creep relaxation ensures high bolt load retention capacity

View Details →

View All Expanded PTFE
