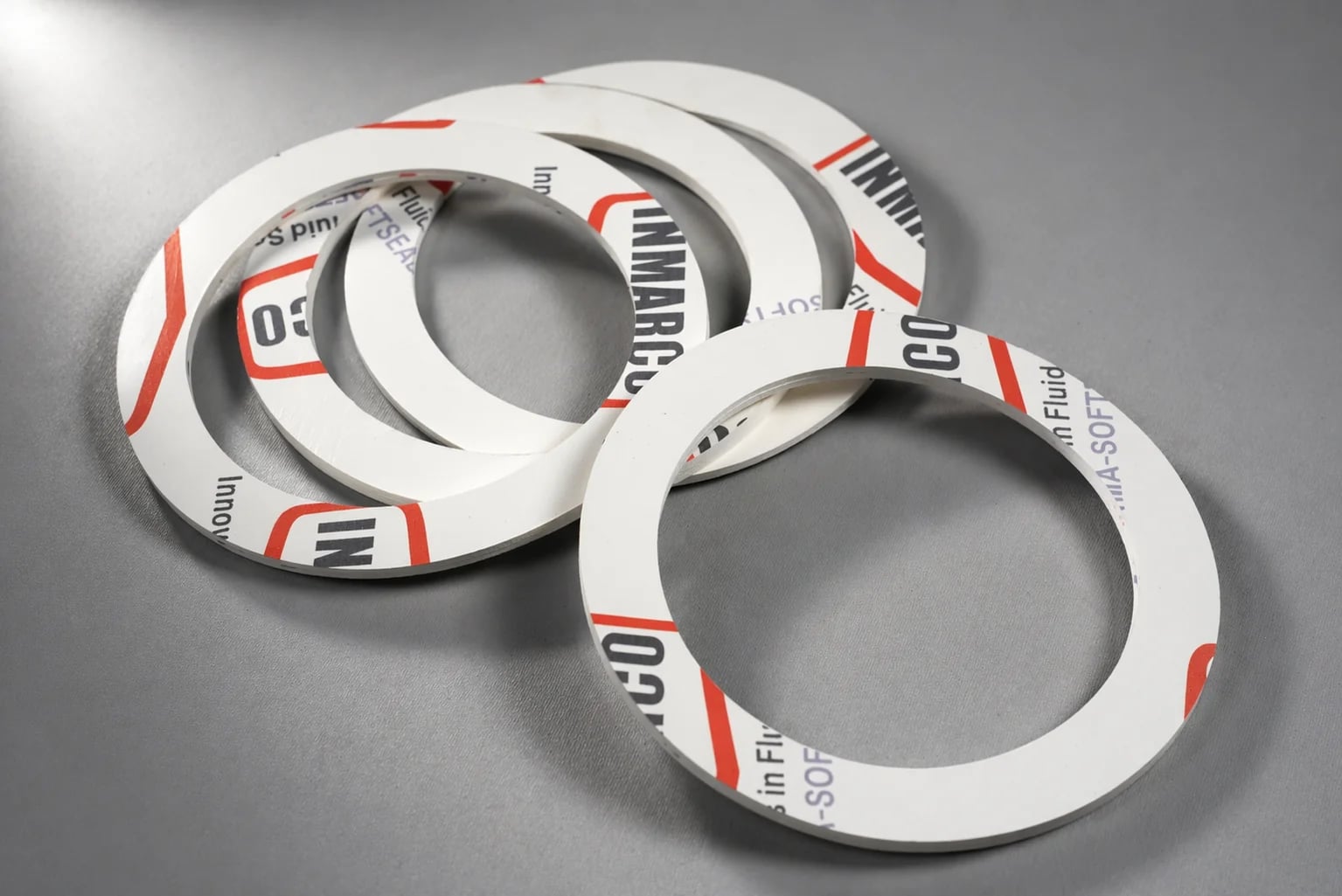

INMATEX EPTFE SHEET/GASKET
1 / 3
Product Description
INMATEX ePTFE sheet provides superior chemical resistance and exceptional sealing performance with very low seating stress in flange joint management. Ideal for critical flanged connections requiring reliable, long-term sealing.
Quick Specifications
Temperature Range (Peak)
-232°C to +315°C
Temperature Range (Service)
-232°C to +260°C
Pressure
Vacuum to 200 Kg/cm²
pH Range
0-14 (Universal)
Technical Data
Specifications
Temperature Range (Peak)-232°C to +315°C
Temperature Range (Service)-232°C to +260°C
PressureVacuum to 200 Kg/cm²
pH Range0-14 (Universal)
ColourWhite
Thickness0.5 mm to 6 mm
m-factor2.0
y-factor3730 PSI
Compressibility60 to 70%
Recovery12 to 20%
Residual Stress25.6 MPa
Additional Technical Data
CertificationAPI 6FB, TA-Luft, FDA 21 CFR 177.1550, ASTM F3369, DIN 28091
Benefits
Key Features
Universal chemical resistance across the full pH spectrum (0-14)
Excellent conformability to irregular flange surfaces
Low creep relaxation ensures high bolt load retention capacity
Superior cold flow resistance maintains sealing integrity
Low-emission compliance for environmental requirements
Use Cases
Applications
Flange joints
Chemical process piping
Fume duct systems
Heat exchangers
Glass-lined equipment
Fiberglass reinforced plastic (FRP) vessels
Pump housing flanges
Compressor housing flanges
Steam vessel flanges
Hydraulic and pneumatic systems
