Product Description

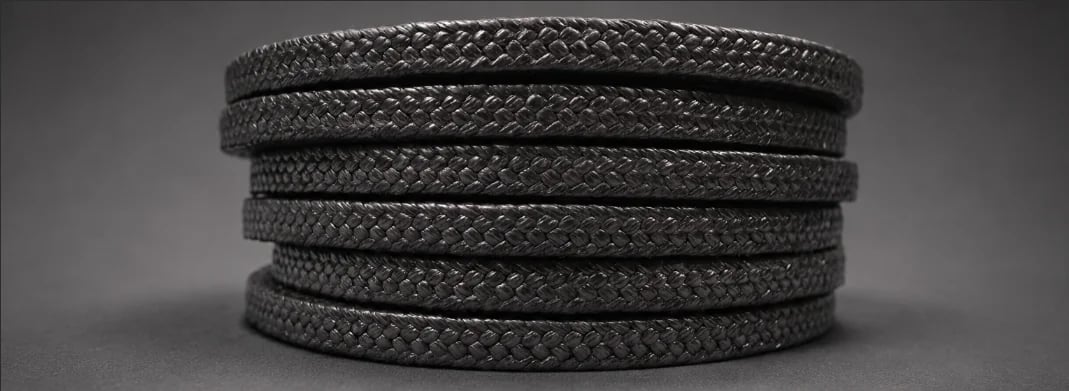

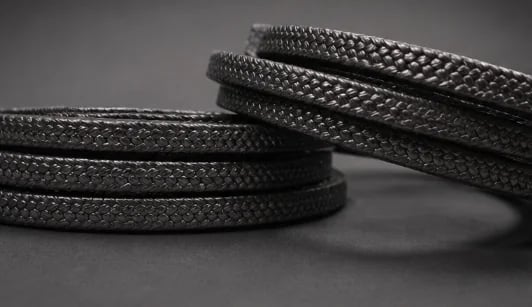

CG 101 is a premium carbon fiber packing engineered for high-temperature service with exceptional thermal stability. Provides reliable sealing in the most demanding thermal environments.
Quick Specifications
pH Range
0 – 14
Temperature Range
-200°C to +650°C
Maximum Pressure
250 Bar
Maximum Velocity
25 m/s
Technical Data
Specifications
pH Range0 – 14
Temperature Range-200°C to +650°C
Maximum Pressure250 Bar
Maximum Velocity25 m/s
Available Sizes3 mm² to 25 mm²
Additional Technical Data
MaterialCarbon filament yarn with graphite-based in-therm dispersion
ImpregnationThermally cured graphite-based blocking agent
Corrosion ProtectionPassive corrosion inhibitor to prevent galvanic corrosion
Benefits
Key Features
Impregnated with graphite-based dispersion to minimize voids and improve density
Acts as an effective blocking agent to reduce stem friction
Forms a tight barrier when compressed to prevent fluid leakage
Withstands high-pressure conditions effectively in demanding applications
Wide chemical resistance including acids, alkalis, and solvents
Excellent heat dissipation ensures cooler shaft operation
Strong yet pliable construction without brittleness
Fire-safe design suitable for flammable media applications
Low oxidation rate ensures extended service life
Use Cases
Applications
Suitable for both dynamic and static sealing applications.
Ideal for pumps, valves, mixers, agitators, and other rotating equipment.
Compatible with acids, alkalis, solvents, organic chemicals, gases, steam, and thermic fluids.
Performs effectively in demanding industrial environments requiring reliable high-temperature sealing.
Conforms well to irregular sealing surfaces, improving sealing performance and reducing leakage risk.
Fire-safe design makes it suitable for applications involving combustible or flammable media.
This product is also available in an Economical version as CG 101E, offering cost-effective sealing solutions while maintaining reliable performance standards.
