Product Description

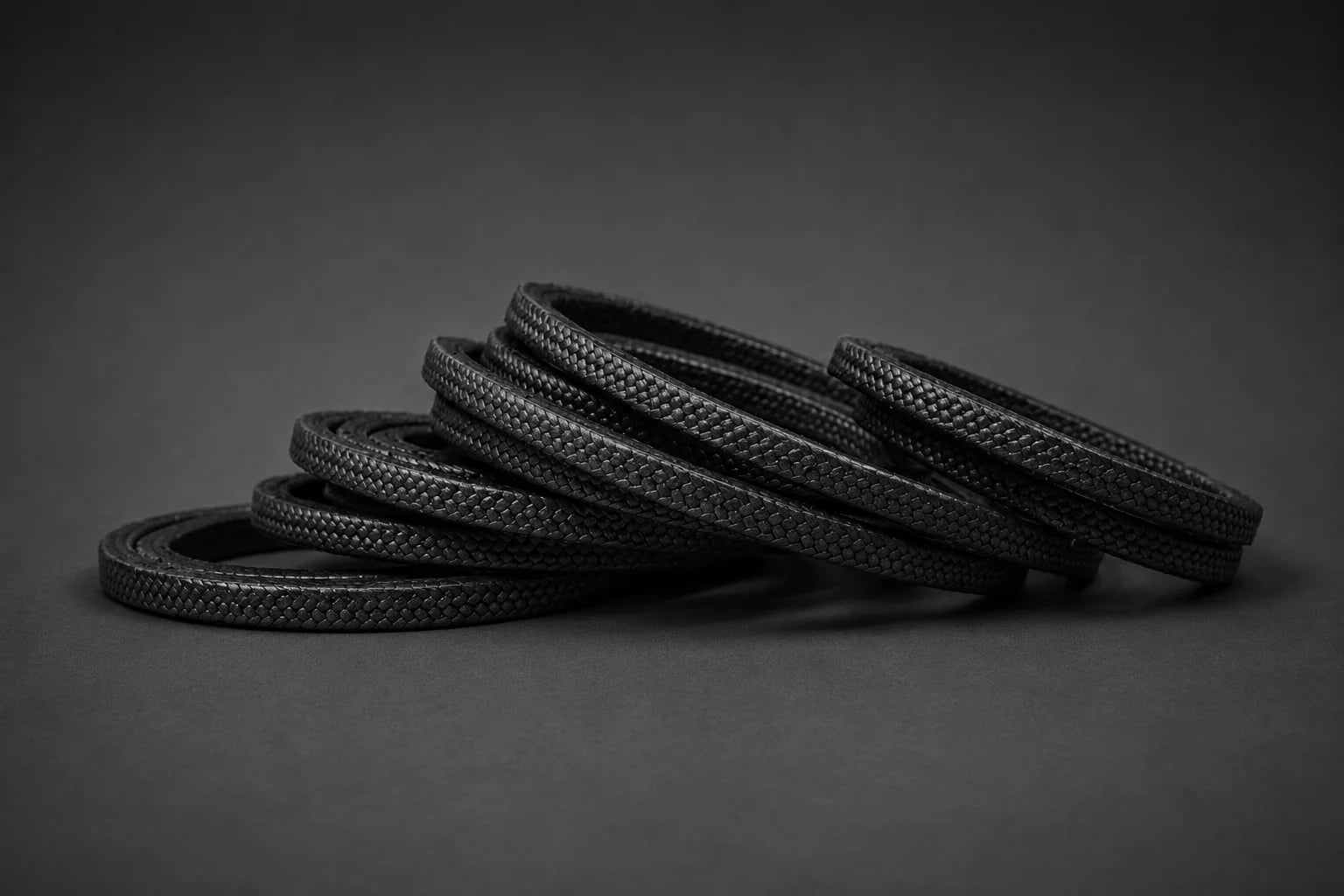

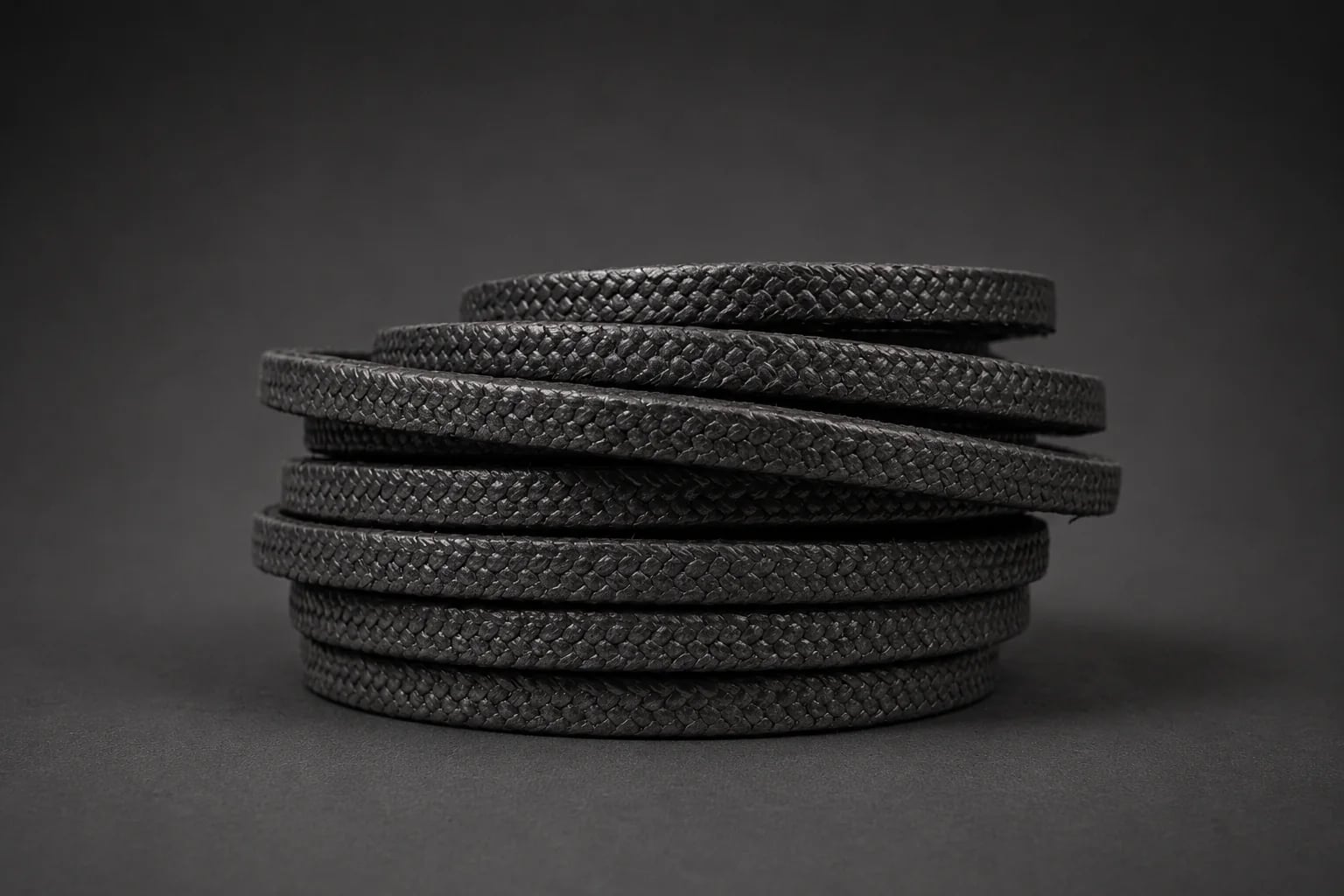

CG 503 provides clean, low-friction carbon graphite sealing specifically engineered for control valve applications. High-purity grade ensures minimal contamination in sensitive processes.
Quick Specifications
Temperature Range
-250°C to +650°C
pH Range
0 – 14
Size Range
3 mm² to 25 mm² cross-section
Maximum Pressure
500 bar
Technical Data
Specifications
| Equipment Type | Pressure | Velocity |
|---|---|---|
| Rotating | 500 bar | --- |
| Reciprocating | 500 bar | --- |
| Static | 500 bar | --- |
Common Specifications
Temperature Range-250°C to +650°C
pH Range0 – 14
Size Range3 mm² to 25 mm² cross-section
Maximum Pressure500 bar
Available Sizes3 mm² to 25 mm²
ReinforcementInconel Wire with Fine Mesh Jacket
Corrosion ProtectionInorganic Passive Corrosion Inhibitor
Additional Technical Data
Certification● Suitable for valve applications from Class 150 to Class 1500.
Benefits
Key Features
High-purity grade designed for clean service applications
Minimal contamination and product degradation
Ultra-low friction and excellent oxidation resistance
Excellent thermal conductivity for heat dissipation
Use Cases
Applications
Control valves
Soot blower systems
High-temperature and high-pressure valve services
Steam systems
Hydrocarbon processing applications
Chemical processing industries
Ammonia service
Thermal fluid systems
Dynamic and static sealing applications
