Product Description

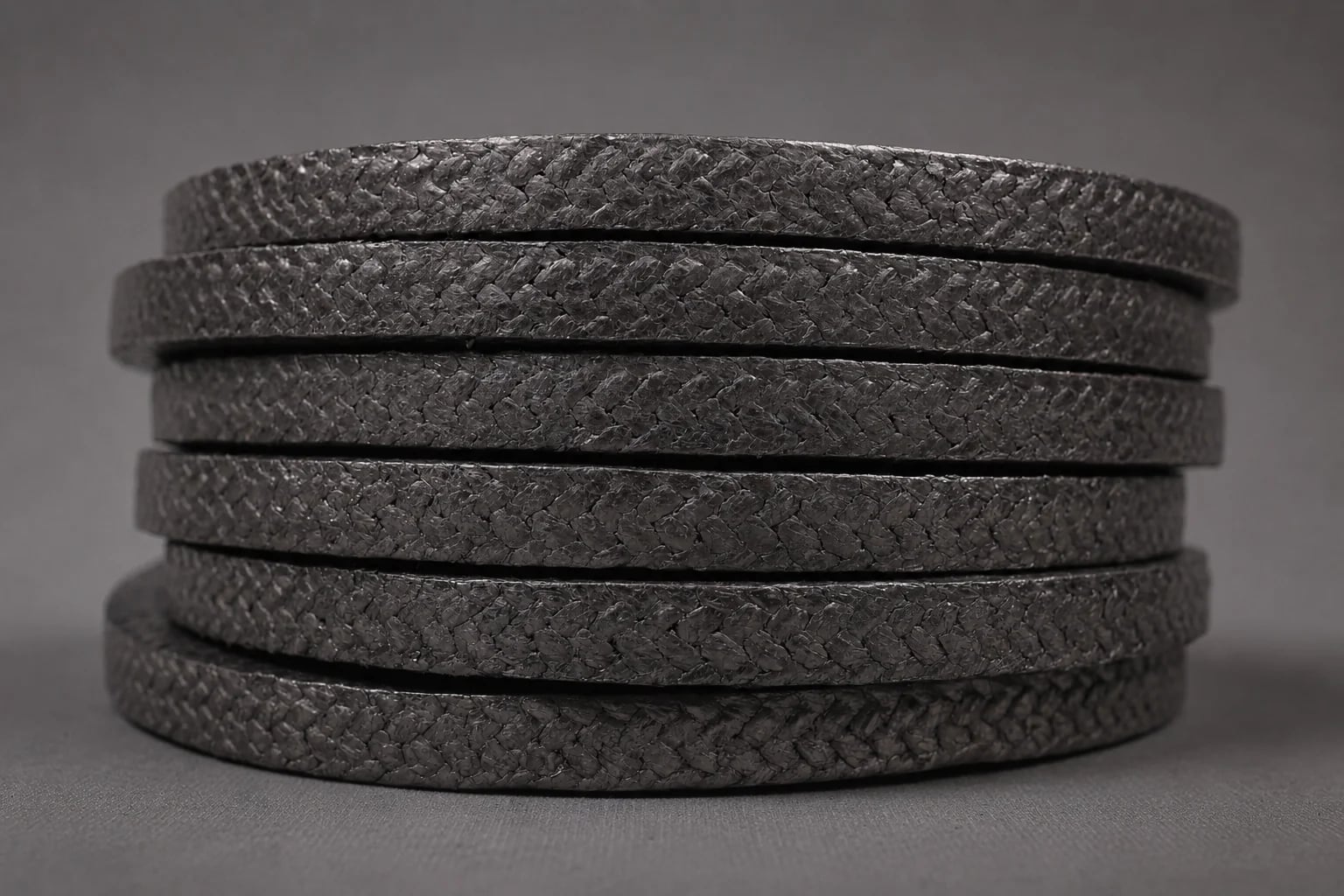

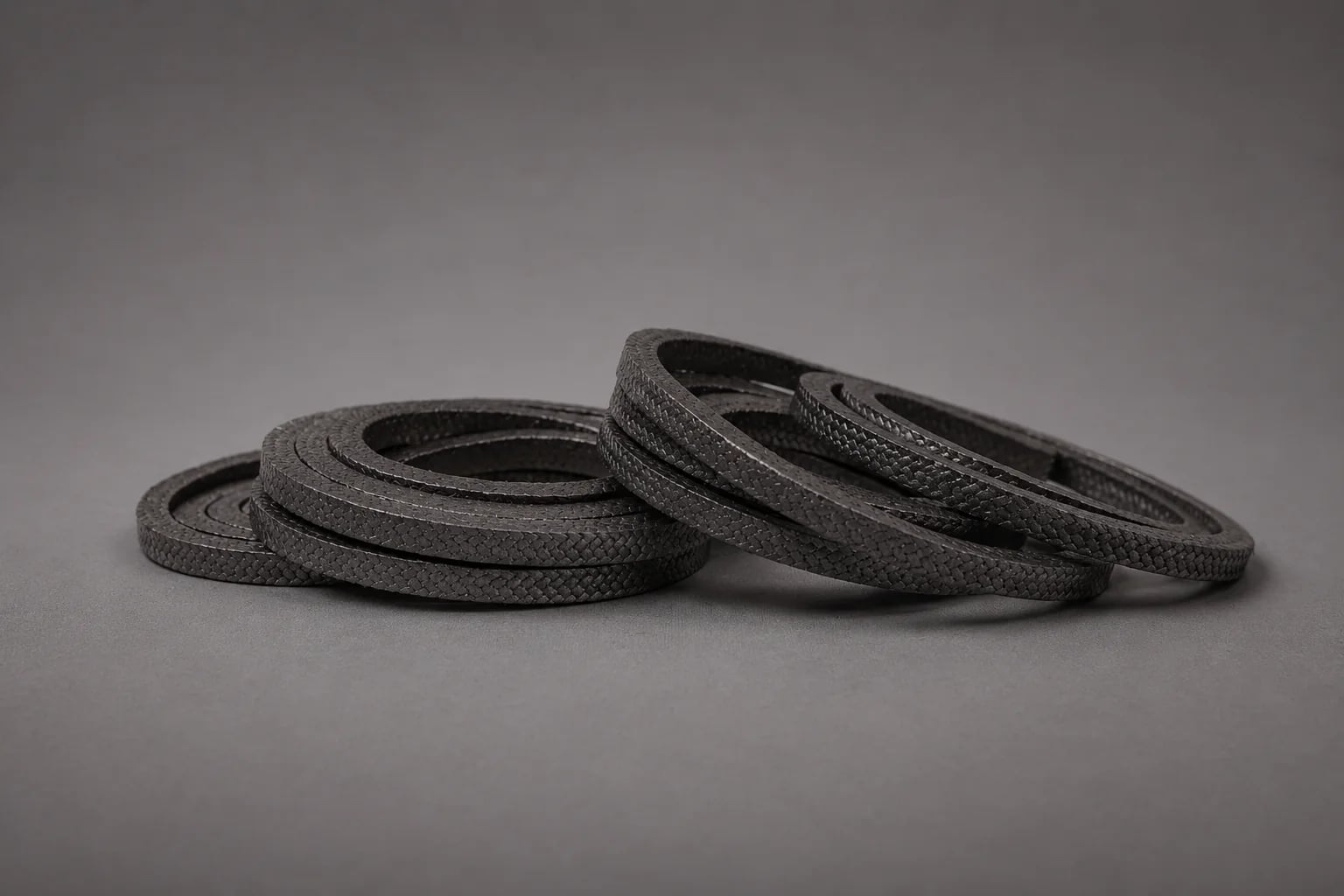

CG 900 delivers exceptional performance in extreme operating conditions utilizing advanced flexible graphite technology. Engineered for high-temperature, high-pressure applications requiring the ultimate in sealing reliability.
Quick Specifications
pH Range
0 – 14
Temperature Range
-200°C to +650°C
Maximum Pressure
500 bar
Available Sizes
3 mm² to 25 mm²
Technical Data
Specifications
pH Range0 – 14
Temperature Range-200°C to +650°C
Maximum Pressure500 bar
Available Sizes3 mm² to 25 mm²
ReinforcementMultiple Inconel Wires
LubricationProprietary THERMOLUBE Dispersion
Corrosion ProtectionInorganic Passive Corrosion Inhibitor
CertificationSHELL MESC SPEC 77/312
Additional Technical Data
Certification● Tested and certified as per SHELL MESC SPEC 77/312 for fugitive emission requirements
Benefits
Key Features
Premium-grade construction for the most severe service conditions
Exceptional pressure surge resistance maintains sealing integrity
Extreme oxidation resistance even at elevated temperatures
Cryogenic to extreme high-temperature operating capability
Exceptional chemical inertness and thermal shock resistance
Use Cases
Applications
Industrial valves operating under severe pressure and temperature conditions
Steam service and hydrocarbon processing equipment
Power generation and petrochemical facilities
Refinery and process industry applications requiring fugitive emission control
Equipment subjected to thermal cycling and pressure fluctuations
