Product Description

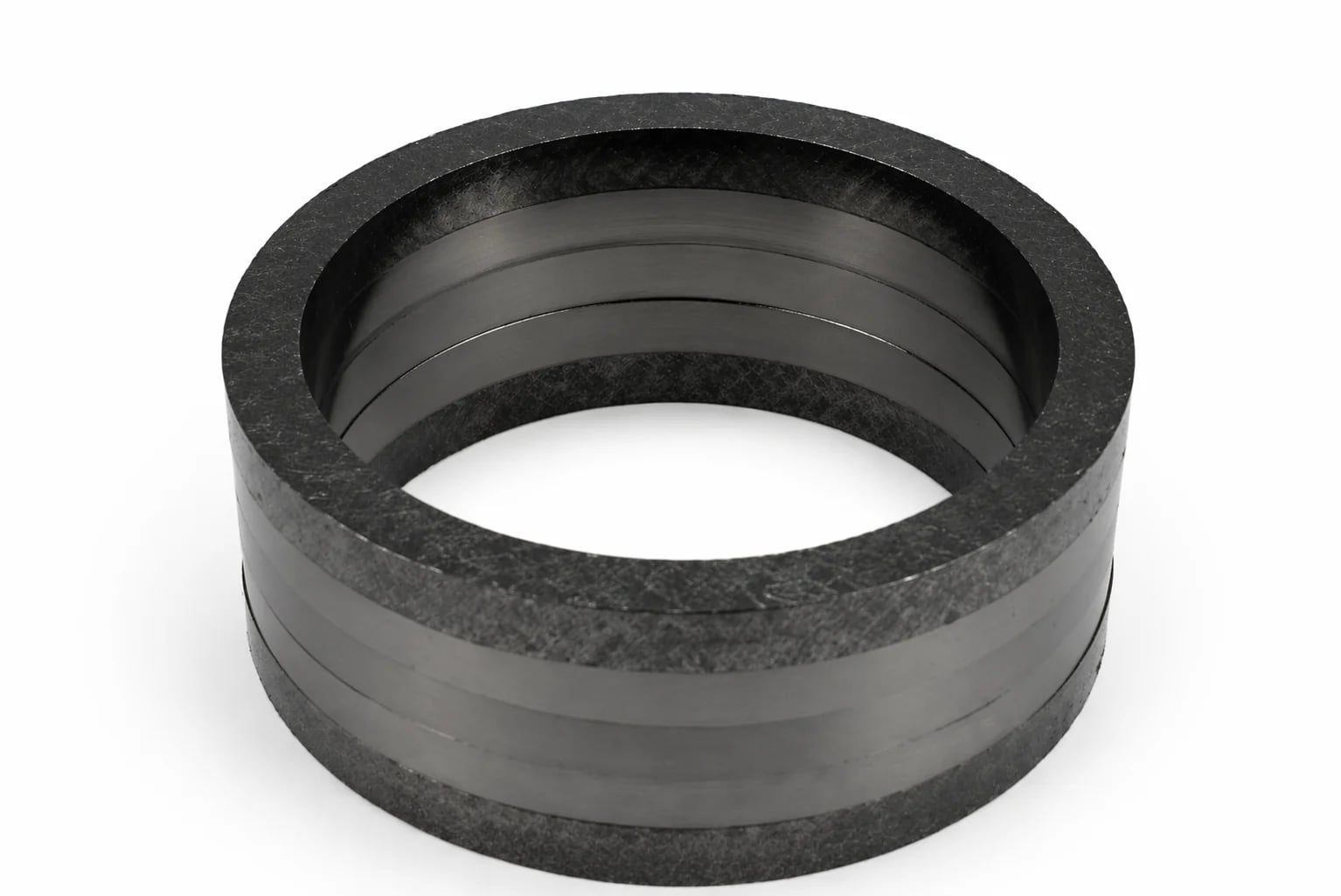

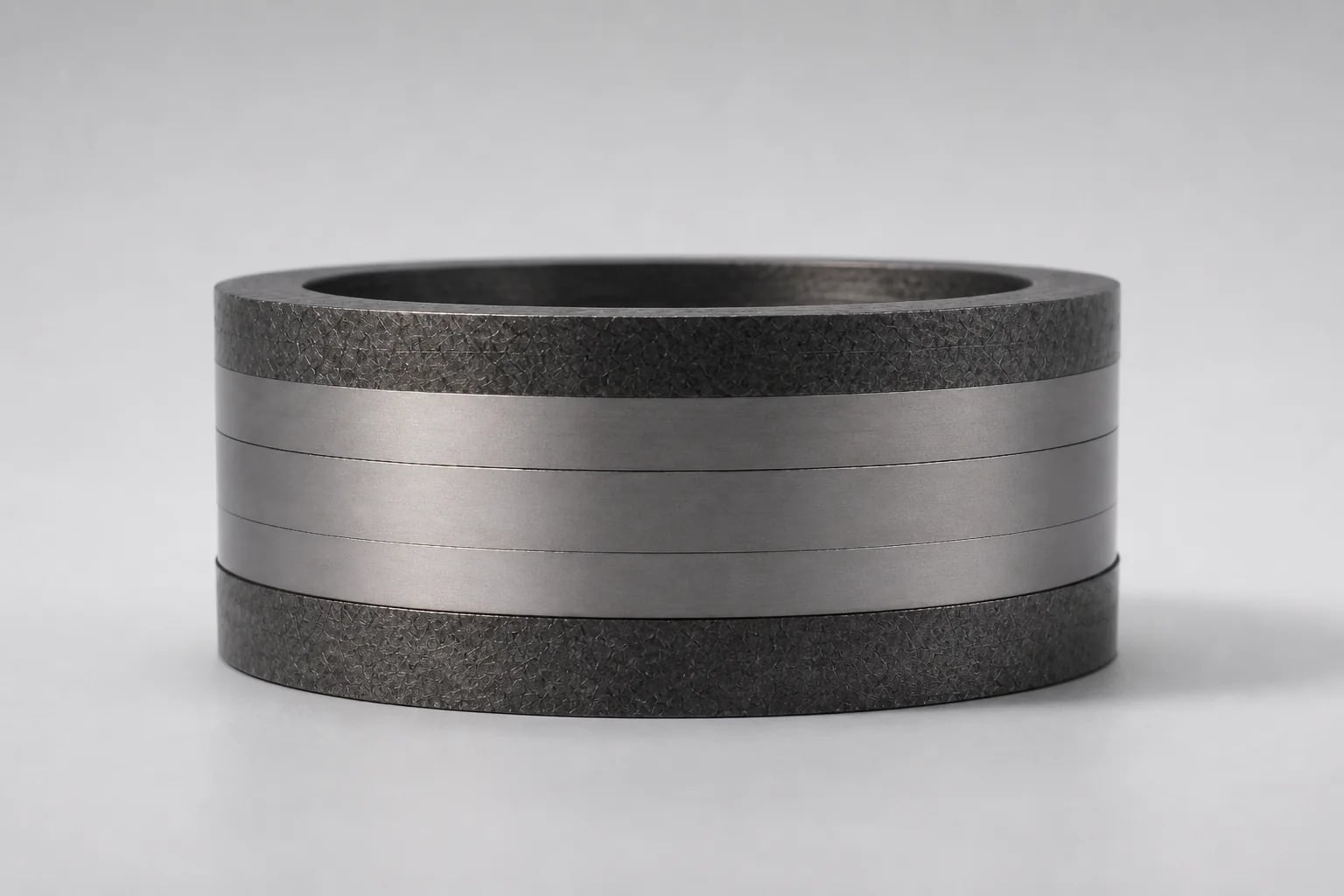

ULTRA FE 1003 is a high-performance, ultra-low emission packing set engineered with exceptionally low friction and superior oxidation resistance. Designed to meet and exceed evolving industry environmental standards and future regulatory requirements.
Quick Specifications
Material Composition
Expanded graphite + Inconel wire mesh reinforcement
pH Range
0 – 14
Temperature Range
-196°C to +538°C
Maximum Pressure
Up to 300 bar
Technical Data
Specifications
Material CompositionExpanded graphite + Inconel wire mesh reinforcement
pH Range0 – 14
Temperature Range-196°C to +538°C
Maximum PressureUp to 300 bar
Size RangeAccording to stuffing box design
Friction CharacteristicsVirtually zero friction with tested friction factor of 0.1
Corrosion ResistanceCorrosion-free performance under ambient and elevated temperature conditions
Chemical CompatibilityWide Chemical Compatibility, for details contact Product Engineering
Application TypeFugitive emission valve sealing applications
Additional Technical Data
Certification● Tested and certified by Yarmouth Research and Technology, USA
Benefits
Key Features
API 622 certified with ultra-low emission performance below 20 ppm
API 607 compliant with zero leakage during and after fire exposure
Minimizes equipment maintenance while delivering exceptional performance
Ultra-low oxidation ensures superior resistance to thermal cycling
Extremely low friction and minimal sealing stress requirements
Extended equipment service life reduces operational costs
Several value additions enhance overall valve performance
Use Cases
Applications
Fugitive emission control valves
Hydrocarbon processing systems
Superheated and saturated steam services
Refinery and petrochemical plants
LNG and gas processing facilities
Thermic fluid systems
Fuel oil and lubricating oil applications
Dyes and chemical processing industries
Hot dry ash and flue gas handling systems
Supercritical CO₂ service applications
High-temperature and high-pressure industrial valves
