Product Description
ULTRA LE 1002 is an API-certified graphite-based low-emission packing engineered for extreme conditions. Delivers exceptional temperature and pressure capabilities with certified fugitive emission control performance.
Quick Specifications
Material Composition
High-purity expanded graphite + multiple Inconel wire reinforcement
Carbon Content
99% min
pH Range
0 – 14
Temperature Range
-240°C to +650°C
Technical Data
Specifications
Material CompositionHigh-purity expanded graphite + multiple Inconel wire reinforcement
Carbon Content99% min
pH Range0 – 14
Temperature Range-240°C to +650°C
Maximum PressureUp to 500 bar
Size Range3 mm² to 25 mm²
Corrosion ProtectionInorganic passive corrosion inhibitor incorporated
Friction CharacteristicsLow-friction lubricated construction
Chemical CompatibilityWide Chemical Compatibility, for details contact Product Engineering
Application TypeLow-emission valve sealing applications
Additional Technical Data
MaterialAdvanced expanded graphite with Inconel wire reinforcement and jacketing
CertificationsAPI 622
ApplicationsValves
CertificationPassed API 622 2nd Edition fugitive emission valve packing qualification testing
Benefits
Key Features
API 622 certified for fugitive emission control compliance
Low friction characteristics minimize shaft wear
Available in both continuous length and preformed ring configurations
Use Cases
Applications
Industrial valve sealing systems
Steam valves and high-temperature valve applications
Hydrocarbon processing systems
Petrochemical and refinery plants
Thermal fluid systems
Fuel oil and lubricating oil services
Hot dry ash and flue gas systems
Chemical and dye processing industries
Screw conveyors and dryers
General low-emission industrial sealing applications

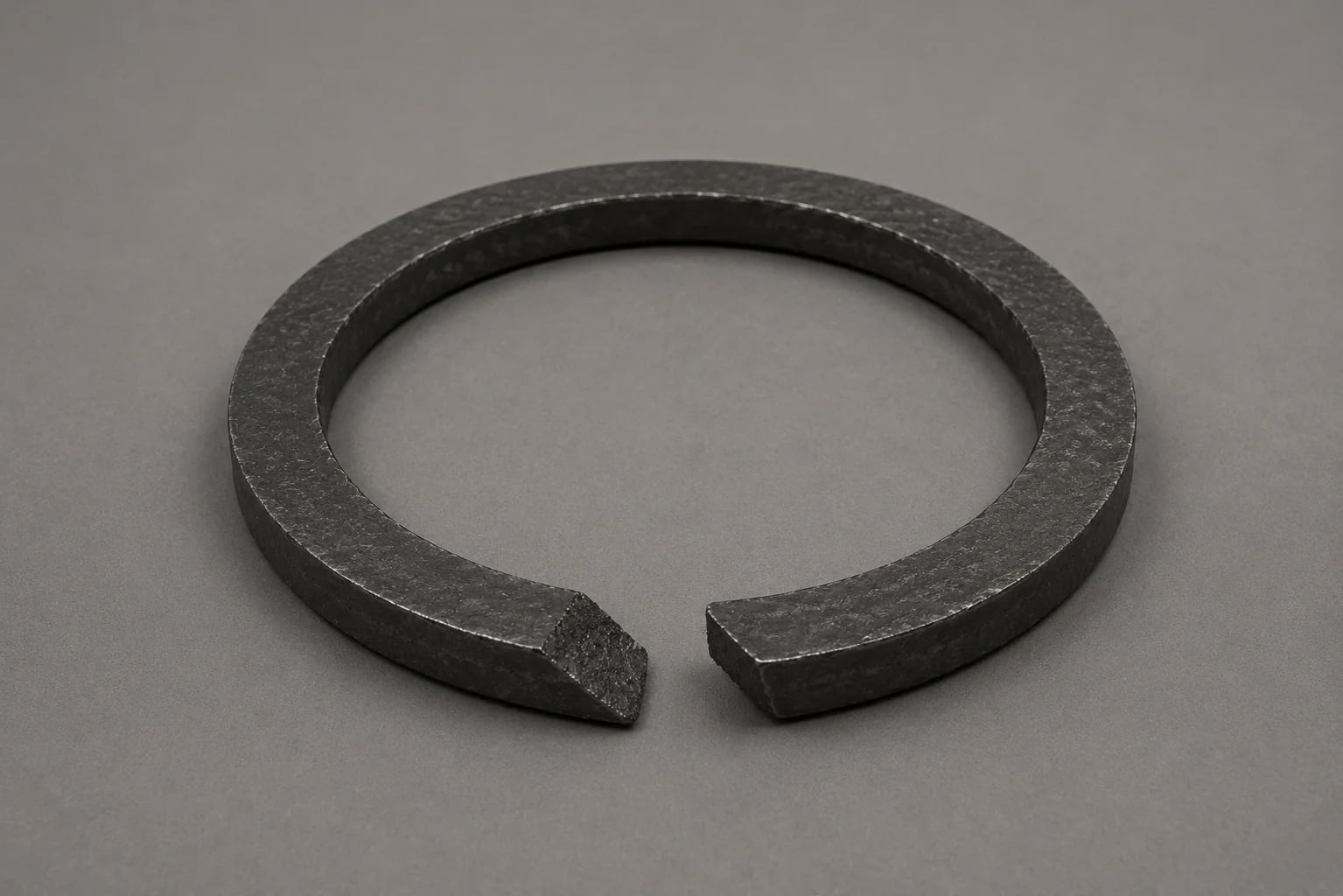

Available continuous rope packing as well as preformed rings
