Product Description

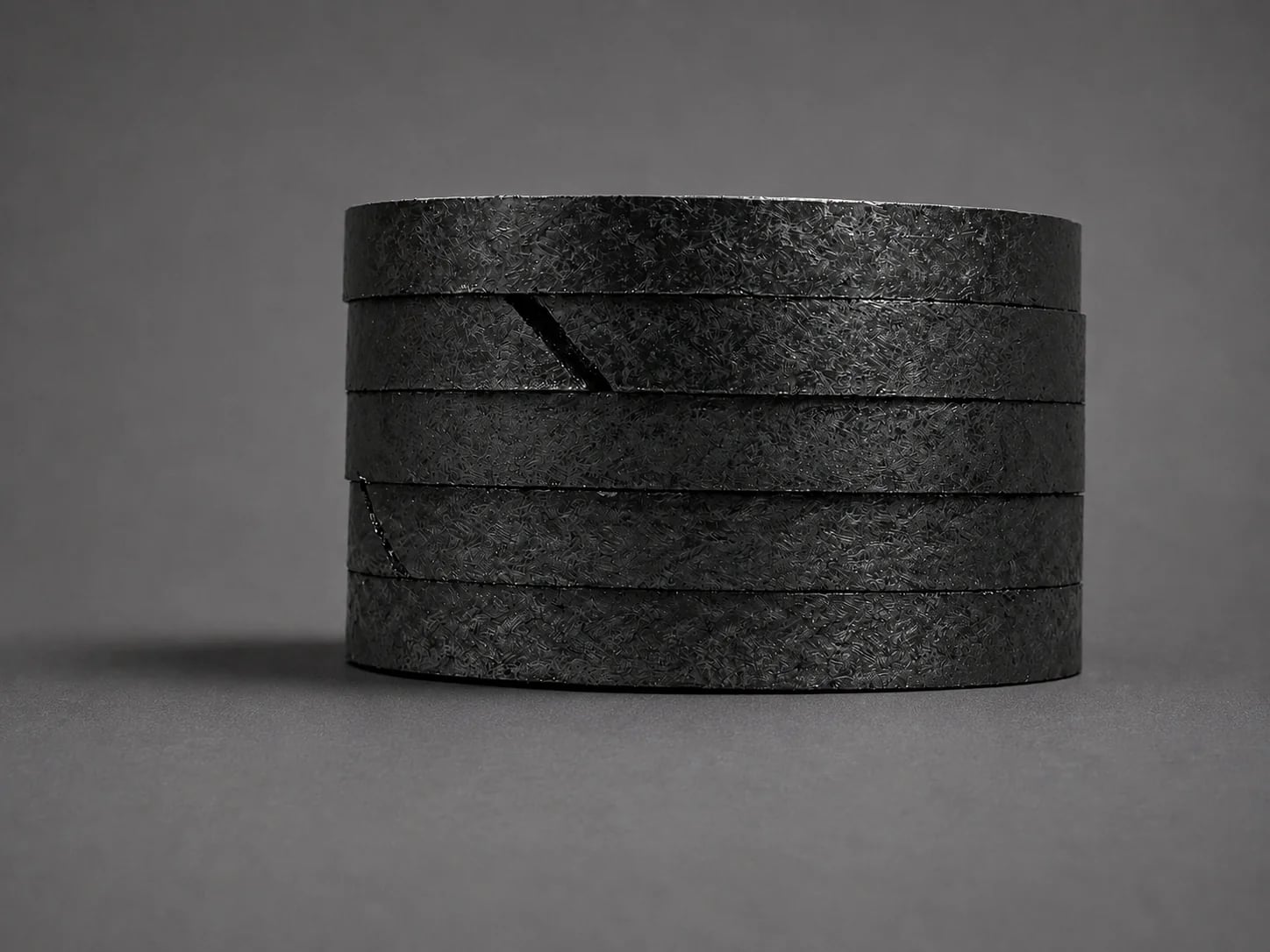

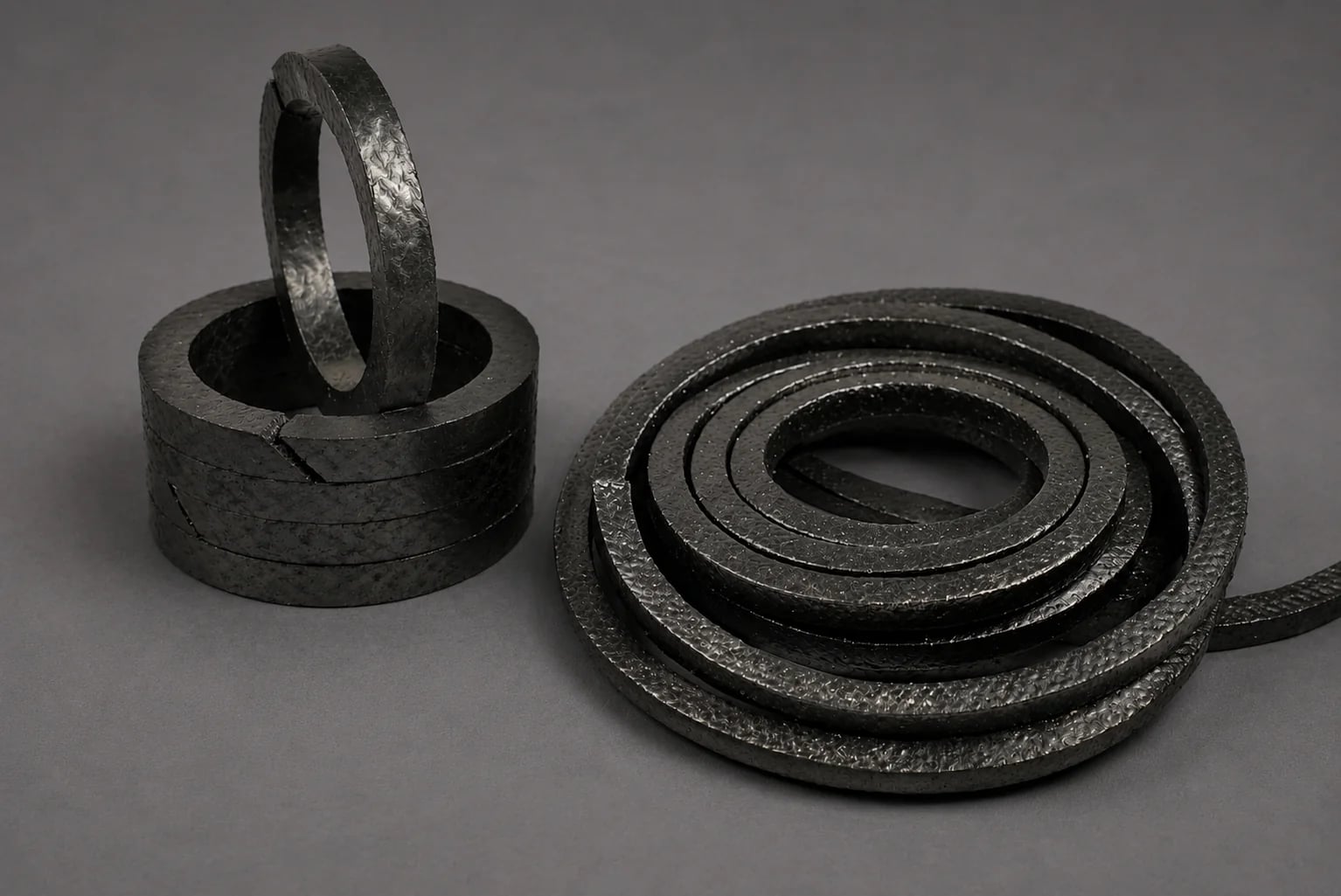

ULTRA NE 1005 is an ultra-low emission braided packing available in both continuous rope and preformed ring configurations. Engineered to meet stringent emission standards with exceptional operational compliance and reliability.
Quick Specifications
Material Composition
High-purity expanded flexible graphite + Inconel wire mesh
pH Range
0 – 14
Temperature Range – Oxidizing Media
-196°C to +538°C
Temperature Range – Steam Service
Up to +650°C
Technical Data
Specifications
Material CompositionHigh-purity expanded flexible graphite + Inconel wire mesh
pH Range0 – 14
Temperature Range – Oxidizing Media-196°C to +538°C
Temperature Range – Steam ServiceUp to +650°C
Maximum PressureUp to 500 bar
Size Range3 mm² to 25 mm²
Chemical CompatibilityWide Chemical Compatibility, for details contact Product Engineering
Fire SafetyFire-safe compliant
Additional Technical Data
CertificationAPI 622 (Latest Edition)
Benefits
Key Features
High-purity graphite with exclusive impregnation technology and thermal stability
Low detrimental material content provides virtually zero loss at elevated temperatures
Proprietary impregnation technology ensures friction-free performance even at high endurance
Flexible ring configuration suitable for shallow stuffing box applications
Supports evolving environmental compliance and ambitious Net Zero emission targets
Ideal choice for several control valve brands for emission compliance
Use Cases
Applications
Critical service valves in petrochemical and refinery operations
High-pressure pumps handling hydrocarbons, chemicals, and aggressive process fluids
Steam turbines and power generation equipment
Chemical processing reactors and vessels
Fugitive emission-controlled equipment requiring API 622 and ISO 15848 compliance
High-temperature and high-pressure rotating and reciprocating equipment
Oil and gas production and processing facilities
Industrial boilers and heat exchangers
Compressors and expanders in gas processing applications
Environmental compliance-driven sealing applications in refineries and chemical plants
Fire-safe service applications requiring reliable sealing performance under emergency conditions
