Product Description

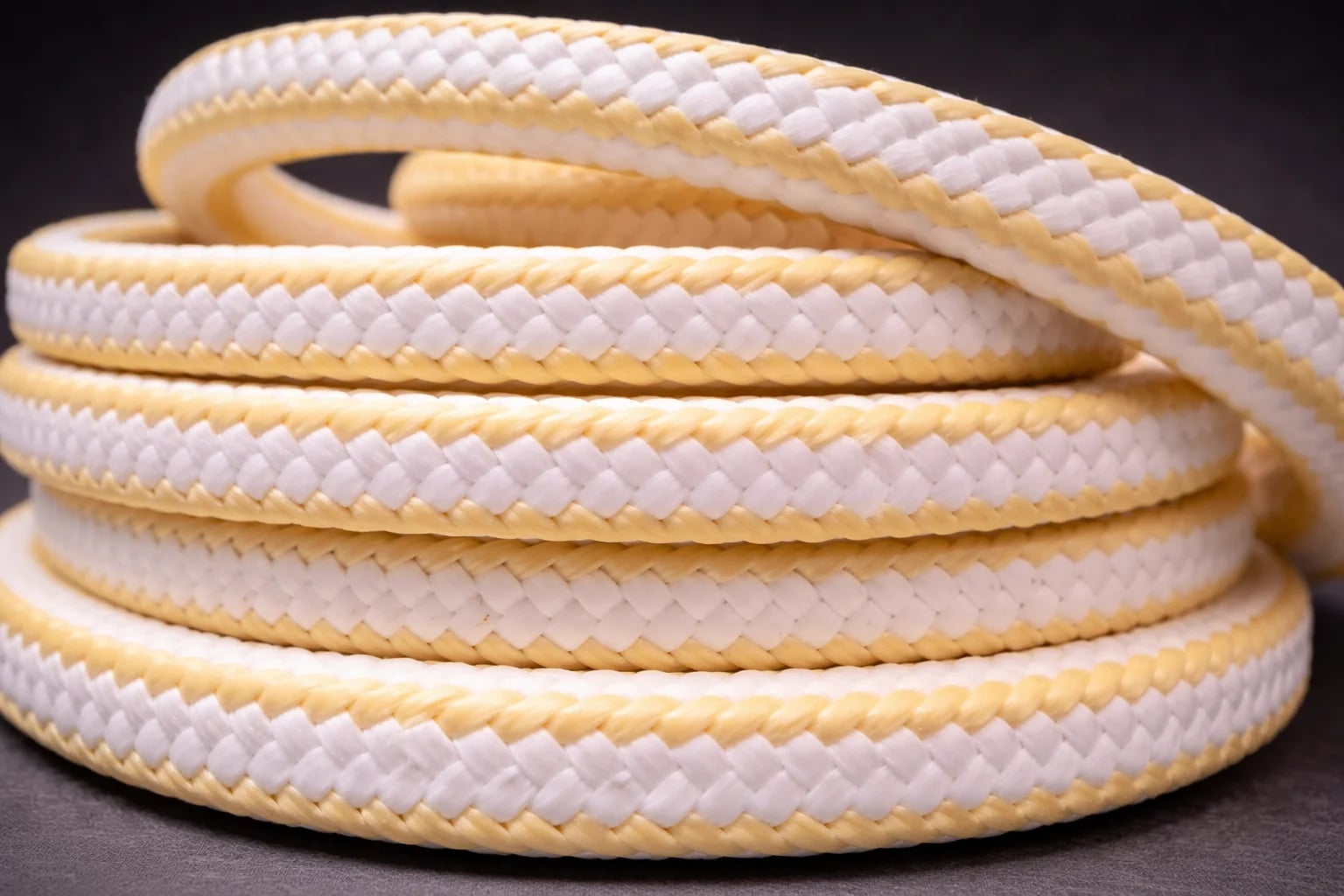

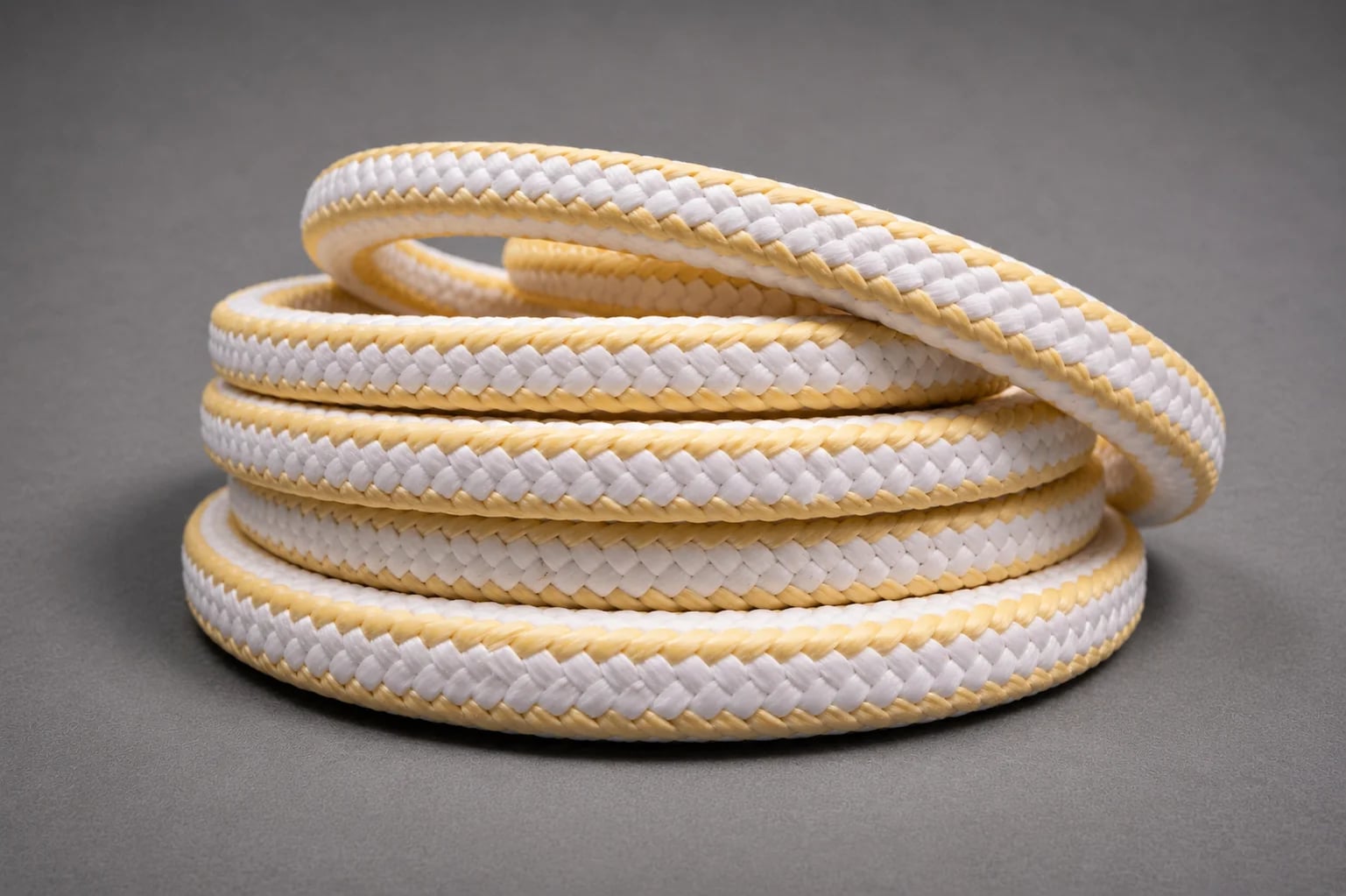

HY 105 is a premium hybrid compression packing engineered to deliver exceptional sealing performance in harsh service conditions. Ideal for pumps and reciprocating equipment operating in demanding industrial environments.
Quick Specifications
Temperature Range
-200°C to +300°C
pH Range
0-14
Size Range
3 mm² to 25 mm²
pH
0-14
Technical Data
Specifications
| Equipment Type | Pressure | Velocity |
|---|---|---|
| Rotating | 100 bar | 25 m/s |
| Reciprocating | 200 bar | 10 m/s |
| Static | 300 bar | --- |
Common Specifications
Temperature Range-200°C to +300°C
pH Range0-14
Size Range3 mm² to 25 mm²
pH0-14
Temperature (°C)-200 to +300°C
Pressure (BAR)100
Velocity (m/s)25
Size3mm² TO 25mm²
Additional Technical Data
MaterialDense braid of Aramid Yarn corners and PTFE Yarn faces with Aramid fiber core
LubricationAdvanced lubricants for reduced friction and enhanced thermal resistance
CoreResilient Aramid fiber core for mechanical strength
CertificationFDA Certified
Benefits
Key Features
Unique combination of aramid yarn corners and PTFE yarn faces for superior performance
Reinforced with high-tensile aramid fiber core for exceptional mechanical strength
PTFE faces treated with inert, high-temperature lubricants for extended service life
Aramid corners lubricated with anti-friction fluoropolymer dispersion
Prevents corner failures commonly experienced in reciprocating equipment
Excellent chemical resistance across a wide range of industrial media
Engineered for long-lasting performance in dynamic sealing environments
Combines strength and flexibility to maintain dimensional stability
FDA compliant for food and pharmaceutical industry applications
Use Cases
Applications
Centrifugal pumps
Reciprocating pumps
Plunger pumps
Valves
Mixers
Agitators
Reactors
Chemical processing equipment
Fertilizer production facilities
Process industry applications
Applications involving slurries, pigments, and synthetic compounds
This product is also available in an Economical version as HY 105E, offering cost-effective sealing solutions while maintaining reliable performance standards.
