Product Description

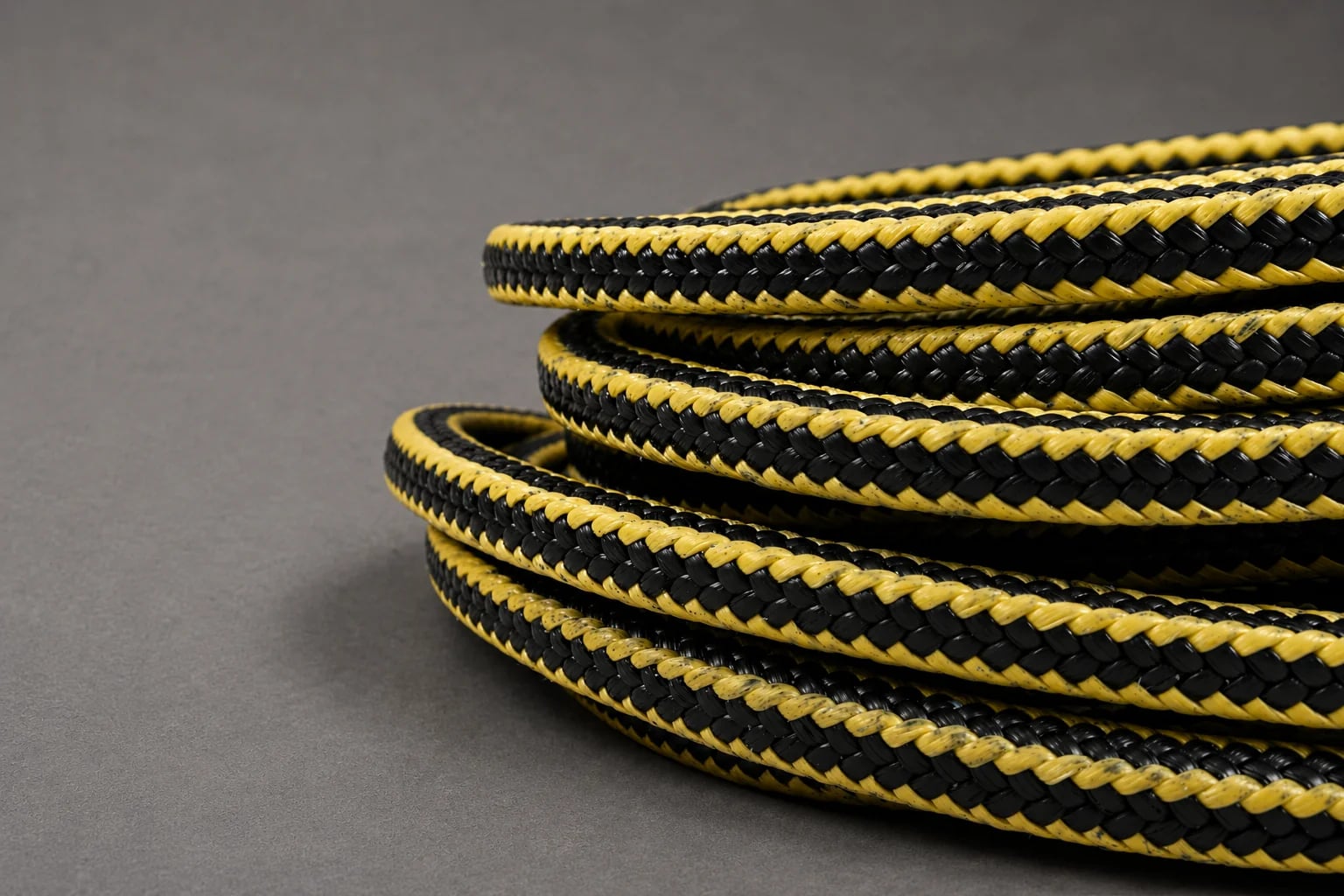

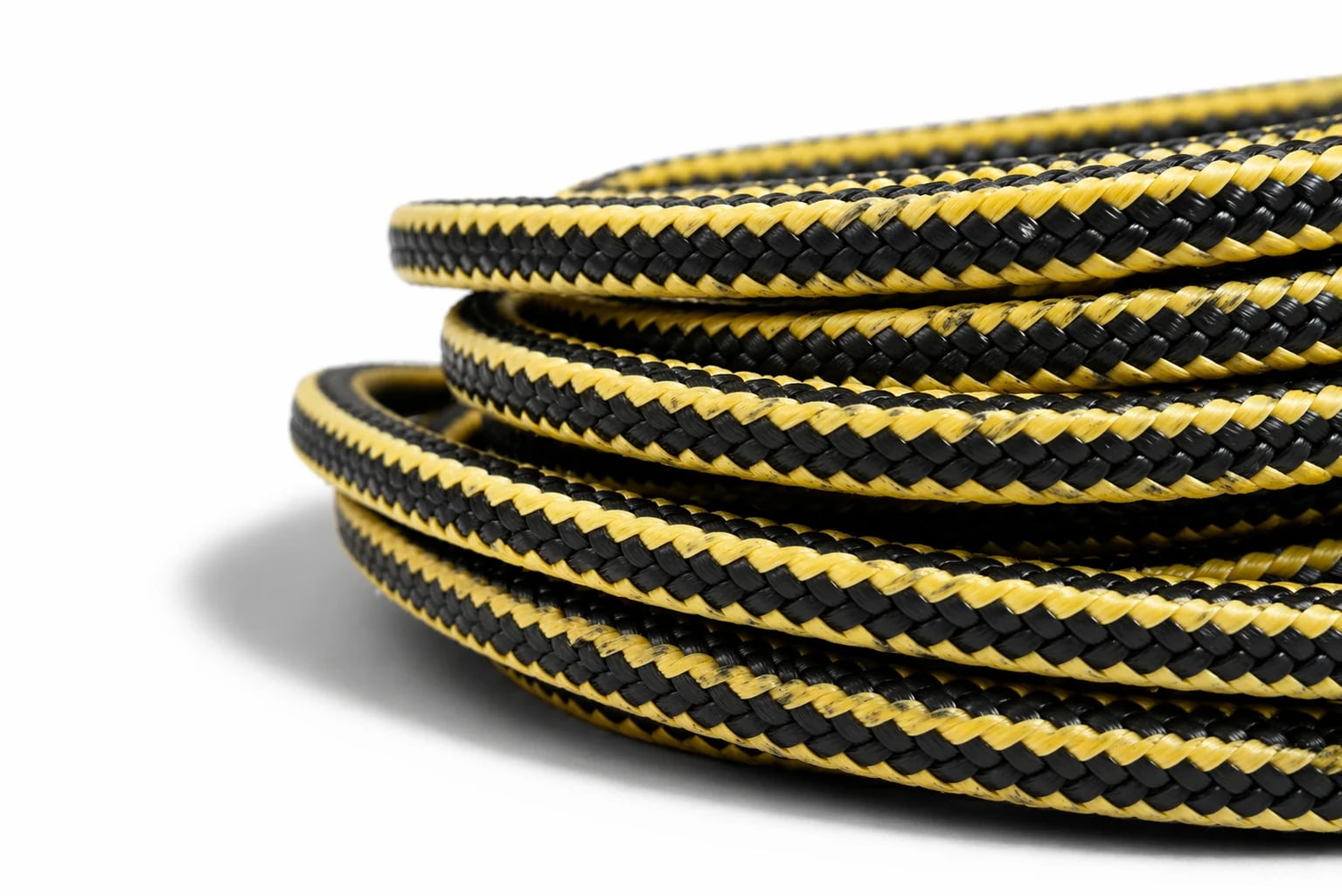

HY 107 provides exceptional sealing performance with advanced hybrid construction engineered for the most demanding reciprocating applications. Particularly effective in fertilizer industry service conditions.
Quick Specifications
Temperature Range
-240°C to +260°C
pH Range
1 – 13
Size Range
6 mm² to 28 mm²
Temperature (°C)
-240 to +260
Technical Data
Specifications
| Equipment Type | Pressure | Velocity |
|---|---|---|
| Rotating | 25 bar | 20 m/s |
| Reciprocating | 100 bar | 2 m/s |
| Static | 250 bar | --- |
Common Specifications
Temperature Range-240°C to +260°C
pH Range1 – 13
Size Range6 mm² to 28 mm²
Temperature (°C)-240 to +260
Pressure (Bar)25
Velocity (m/s)20
Additional Technical Data
CertificationEN 16752
Benefits
Key Features
Premium performance in severe service conditions requiring reciprocating motion
Exceptional wear resistance ensures extended service life
Superior chemical and thermal resistance for aggressive environments
Excellent resilience under high-pressure operating conditions
Ideal sealing solution specifically for fertilizer industry applications
Use Cases
Applications
Centrifugal pumps
Process pumps
Industrial valves
Agitators and mixers
Chemical processing equipment
Ammonia service applications
Carbamate service applications
General industrial rotating equipment
Dynamic sealing applications
Equipment handling abrasive media
This product is also available in an Economical version as HY 107E, offering cost-effective sealing solutions while maintaining reliable performance standards.
