Product Description

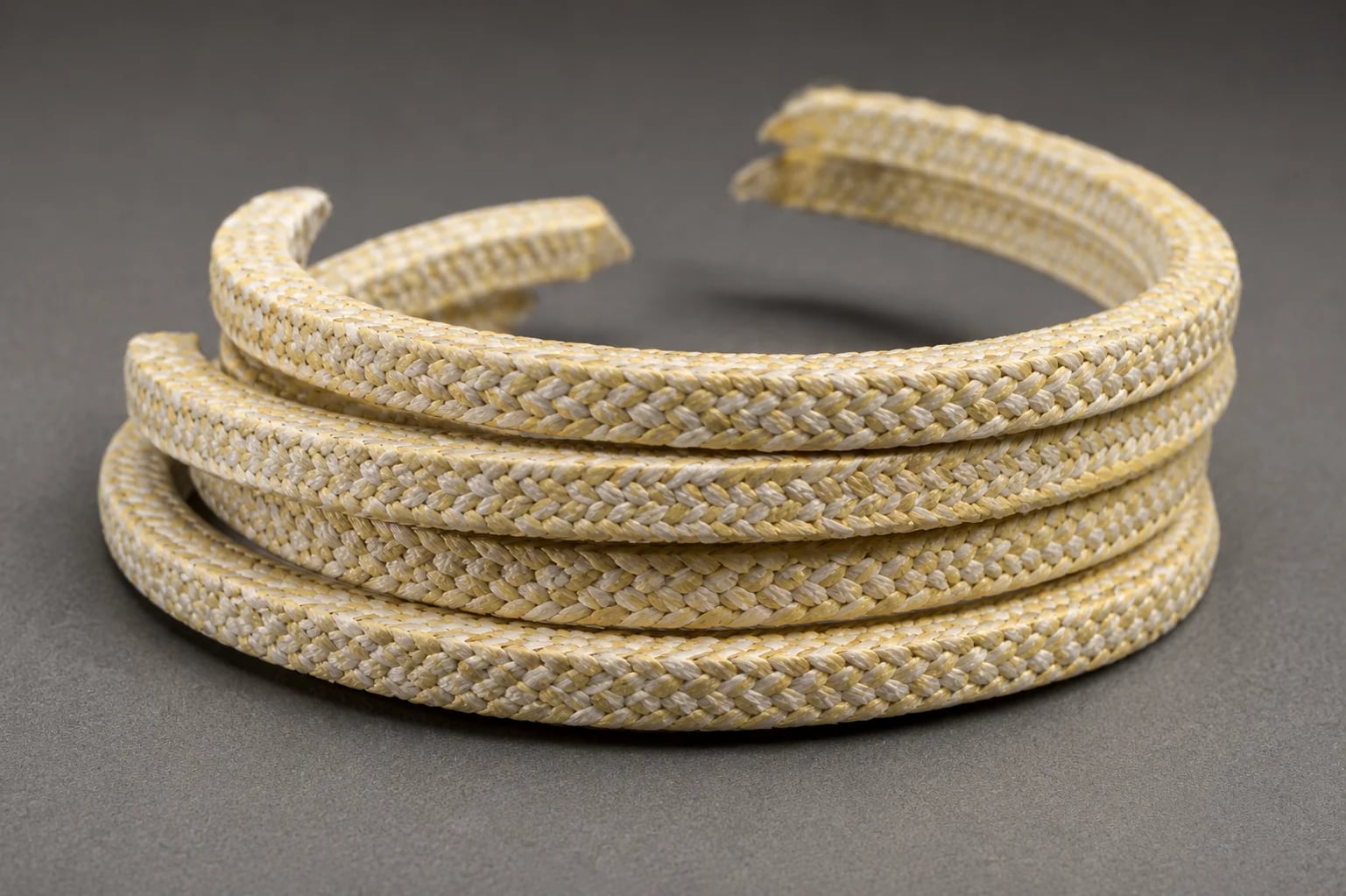

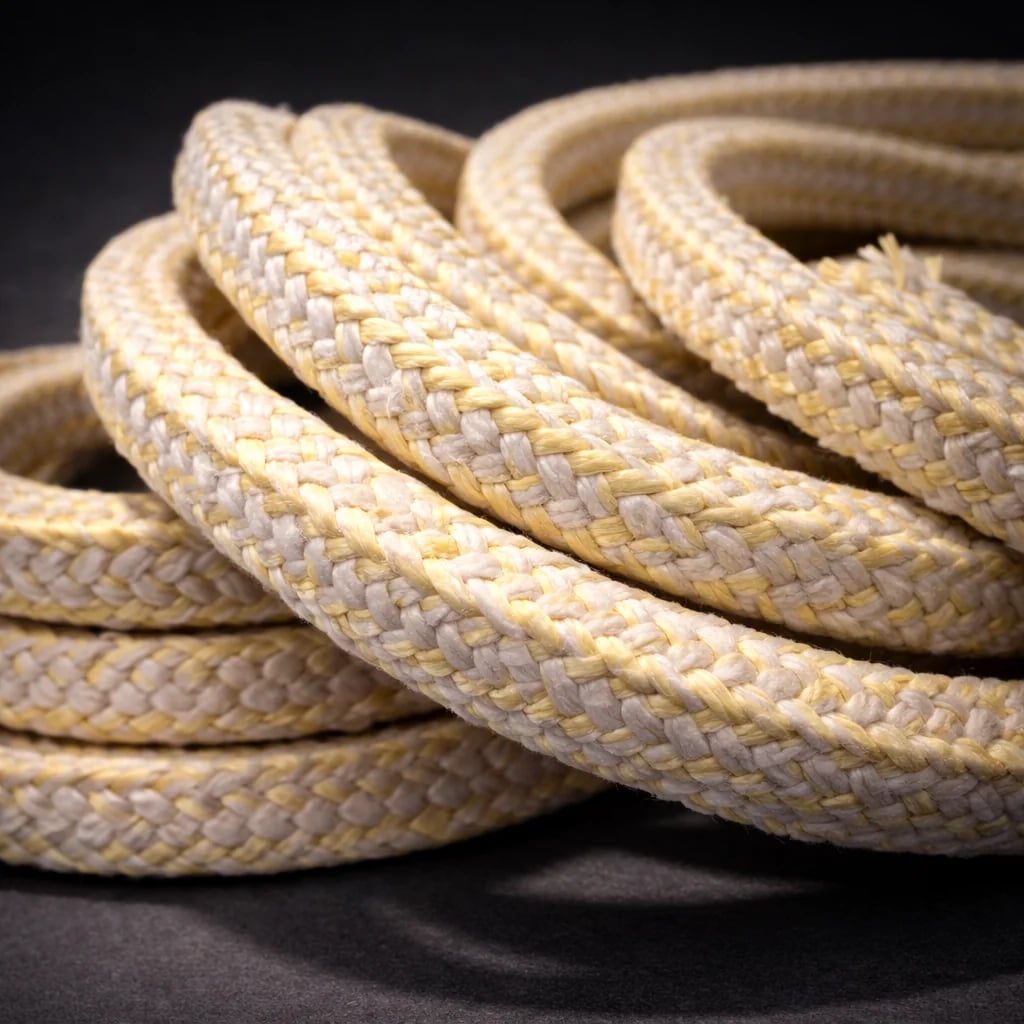

HY 120AR is an aramid-reinforced vegetable fiber packing offering superior mechanical strength and abrasion resistance. Engineered for demanding services requiring enhanced durability and load-bearing capacity.
Quick Specifications
Temperature Range
-40°C to +150°C
pH Range
6 – 11
Size Range
3 mm² to 25 mm²
Technical Data
Specifications
| Equipment Type | Pressure | Velocity |
|---|---|---|
| Rotating | 50 bar | 10 m/s |
| Reciprocating | 100 bar | 2 m/s |
| Static | 200 bar | --- |
Common Specifications
Temperature Range-40°C to +150°C
pH Range6 – 11
Size Range3 mm² to 25 mm²
Additional Technical Data
CertificationISO 15848-1
Benefits
Key Features
Exceptional mechanical strength from aramid fiber reinforcement
Superior abrasion and wear resistance in demanding applications
Good thermal and chemical stability across various services
Enhanced load-bearing capacity for high-pressure applications
Excellent dimensional stability under pressure and load
Use Cases
Applications
Equipment handling crystallizing fluids
Marine stern tubes
Rudder posts
Bilge pumps
Water wheel glands
General water handling equipment
Industrial pumps
Marine service equipment
Additional Support?
Contact our sales team for pricing, availability, and technical specifications.
