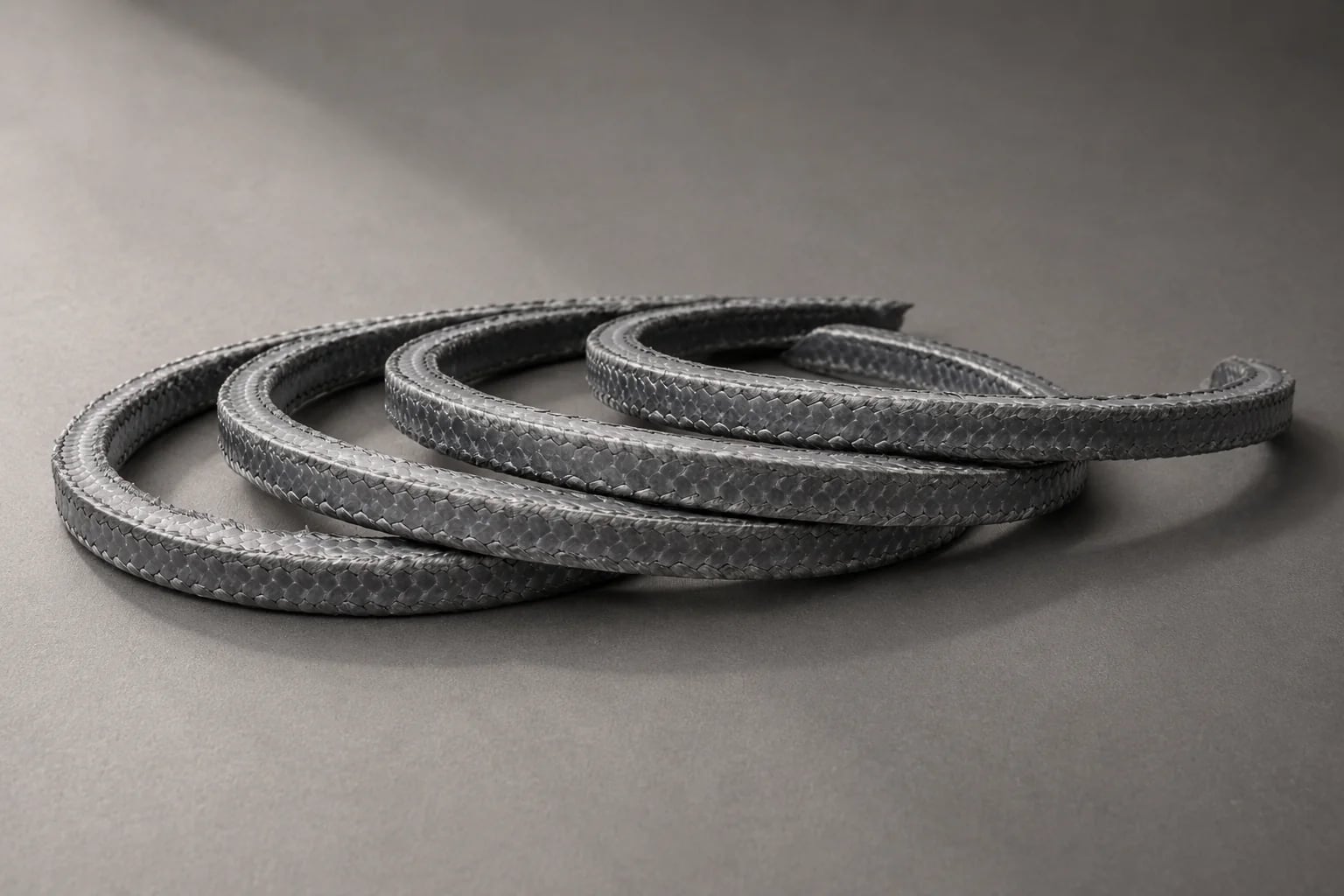

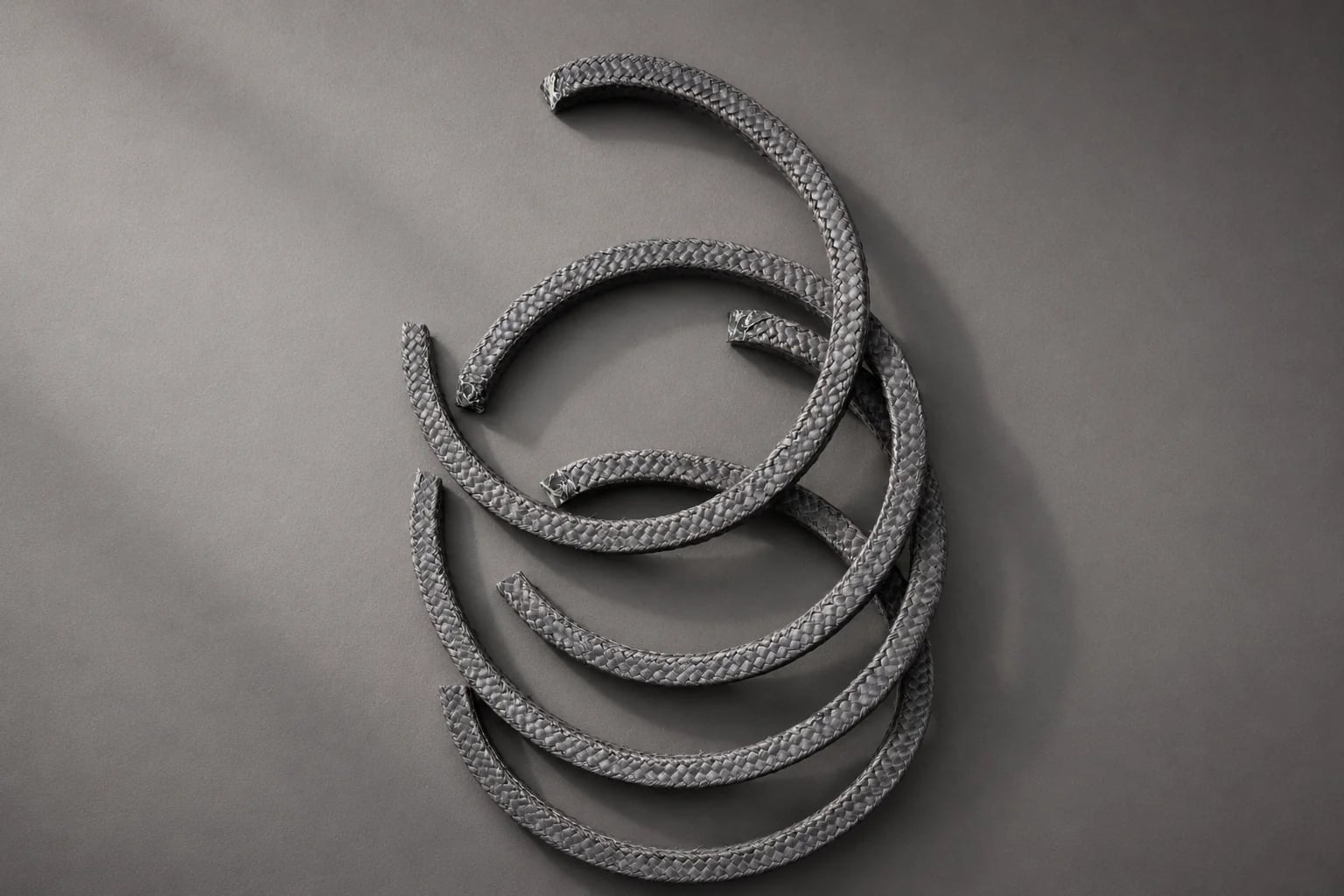

Product Description
HY 504 combines multiple high-performance materials in a hybrid construction to deliver superior sealing across various service conditions. Its unique structural design provides exceptional reliability in demanding industrial environments.
Quick Specifications
Temperature Range
-200°C to +300°C
pH Range
0 – 14
Size Range
3 mm² to 25 mm²
Maximum Pressure
100 bar
Technical Data
Specifications
| Equipment Type | Pressure | Velocity |
|---|---|---|
| Rotating | 200 bar | 25 m/s |
| Reciprocating | 300 bar | 15 m/s |
| Static | 350 bar | --- |
Common Specifications
Temperature Range-200°C to +300°C
pH Range0 – 14
Size Range3 mm² to 25 mm²
Maximum Pressure100 bar
Velocity25 m/s
Additional Technical Data
CertificationEN 16752 (Centrifugal Pumps Test Procedure for Seal Packing), Tightness Class T1
Benefits
Key Features
Combines benefits of multiple material technologies for enhanced performance
Extended temperature range provides versatility across diverse applications
Excellent wear resistance ensures long-term durability
Broad chemical compatibility suitable for most industrial services
Reduced break-in time simplifies installation and commissioning
Use Cases
Applications
Centrifugal pumps
Process pumps
Valves
Agitators
Mixers
Reactors
Rotary equipment
Chemical processing equipment
Petrochemical installations
General industrial services
