Product Description

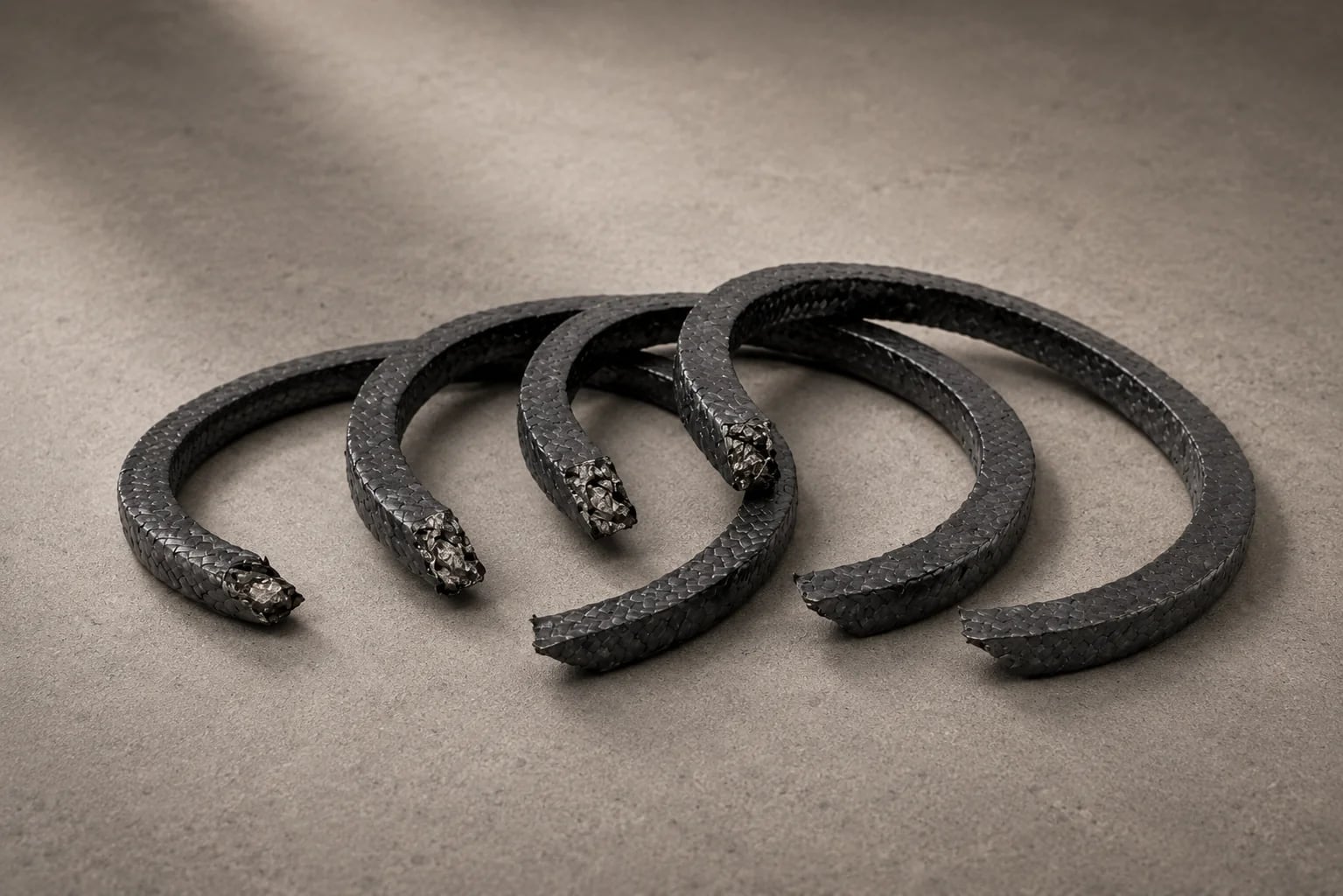

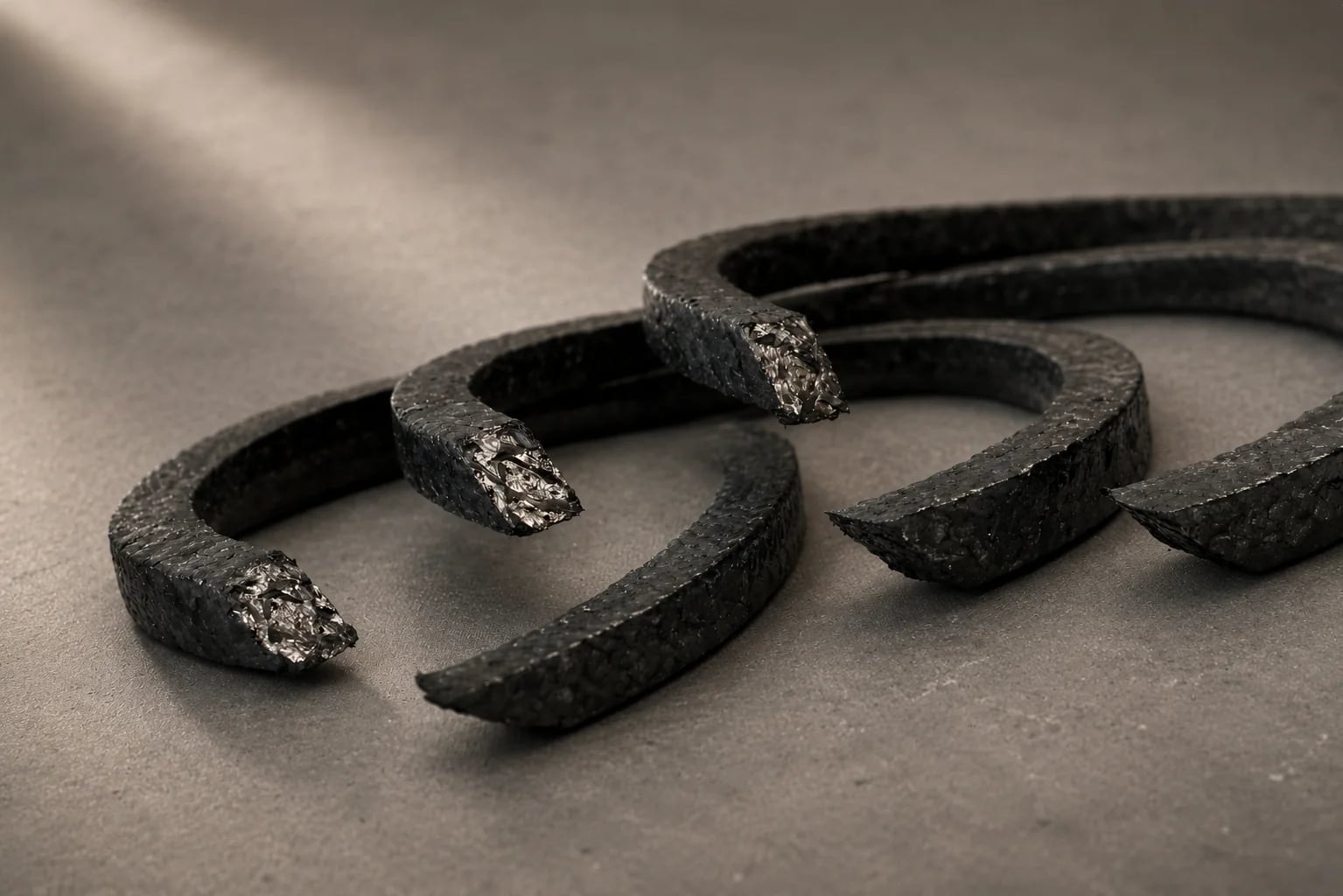

HY 801 is a premium carbon graphite packing optimized for centrifugal and rotary pump sealing in the most demanding applications. Specifically engineered for challenging conditions including congealing media services.
Quick Specifications
pH Range
0 – 14
Temperature (°C)
-200 to +650
Temperature (Non-Oxidizing Media)
Up to 2750°C
Pressure (Bar)
150
Technical Data
Specifications
pH Range0 – 14
Temperature (°C)-200 to +650
Temperature (Non-Oxidizing Media)Up to 2750°C
Pressure (Bar)150
Velocity (m/s)25
Size Range3 mm² to 25 mm²
Additional Technical Data
CertificationTested and certified as per API 607 Fire Safe Test
Benefits
Key Features
Specifically engineered for challenging applications such as congealing media
Excellent resilience under thermal cycling conditions
Superior wear resistance in abrasive service environments
Easy installation with minimal break-in period required
Minimal product contamination for sensitive processes
Clean service suitable for critical industrial applications
Good thermal conductivity and lubrication properties
Universal chemical resistance across diverse industrial media
Low particulate generation maintains process purity
Use Cases
Applications
Pumps
Mixers
Agitators
Reactors
General industrial sealing services
