Product Description

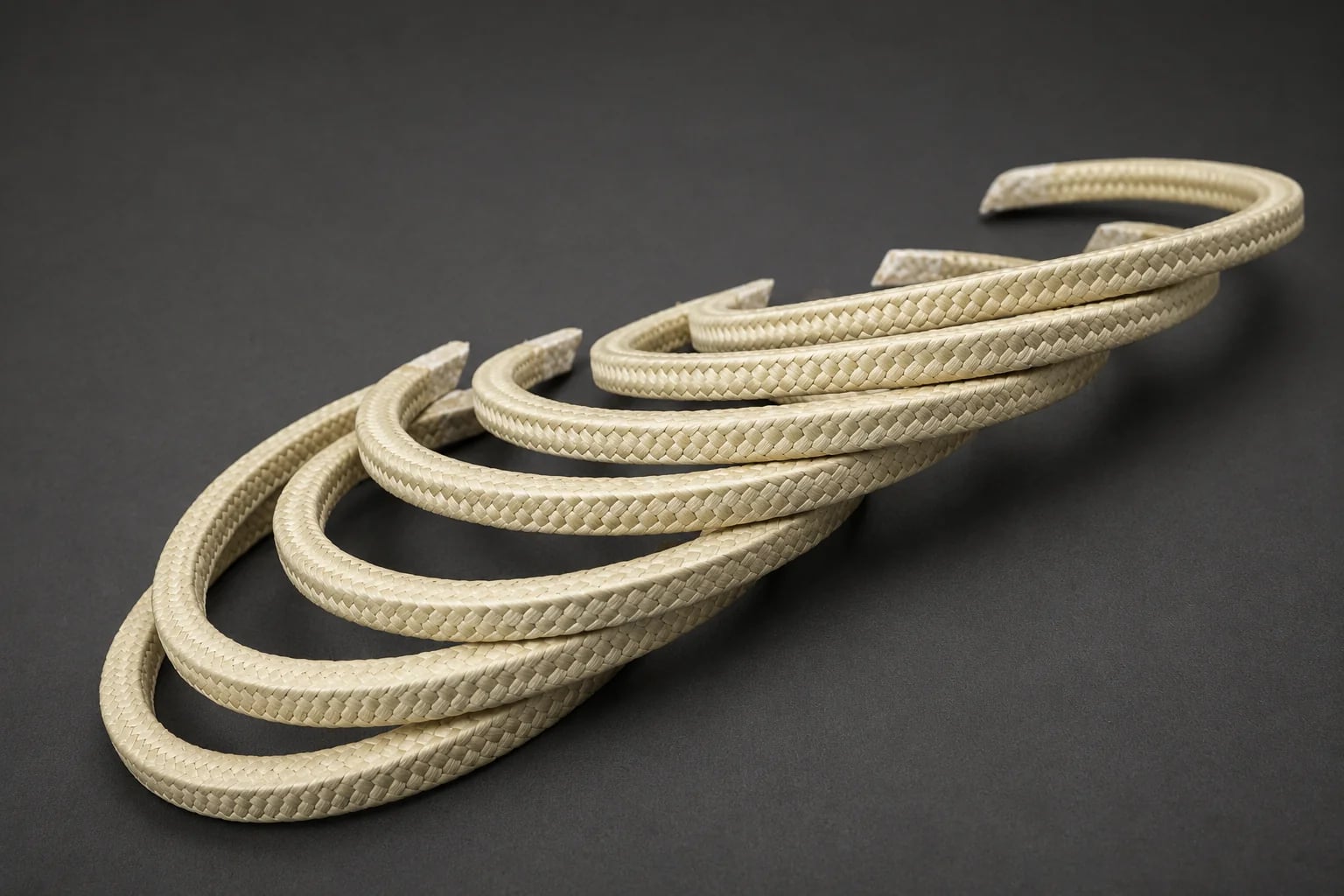

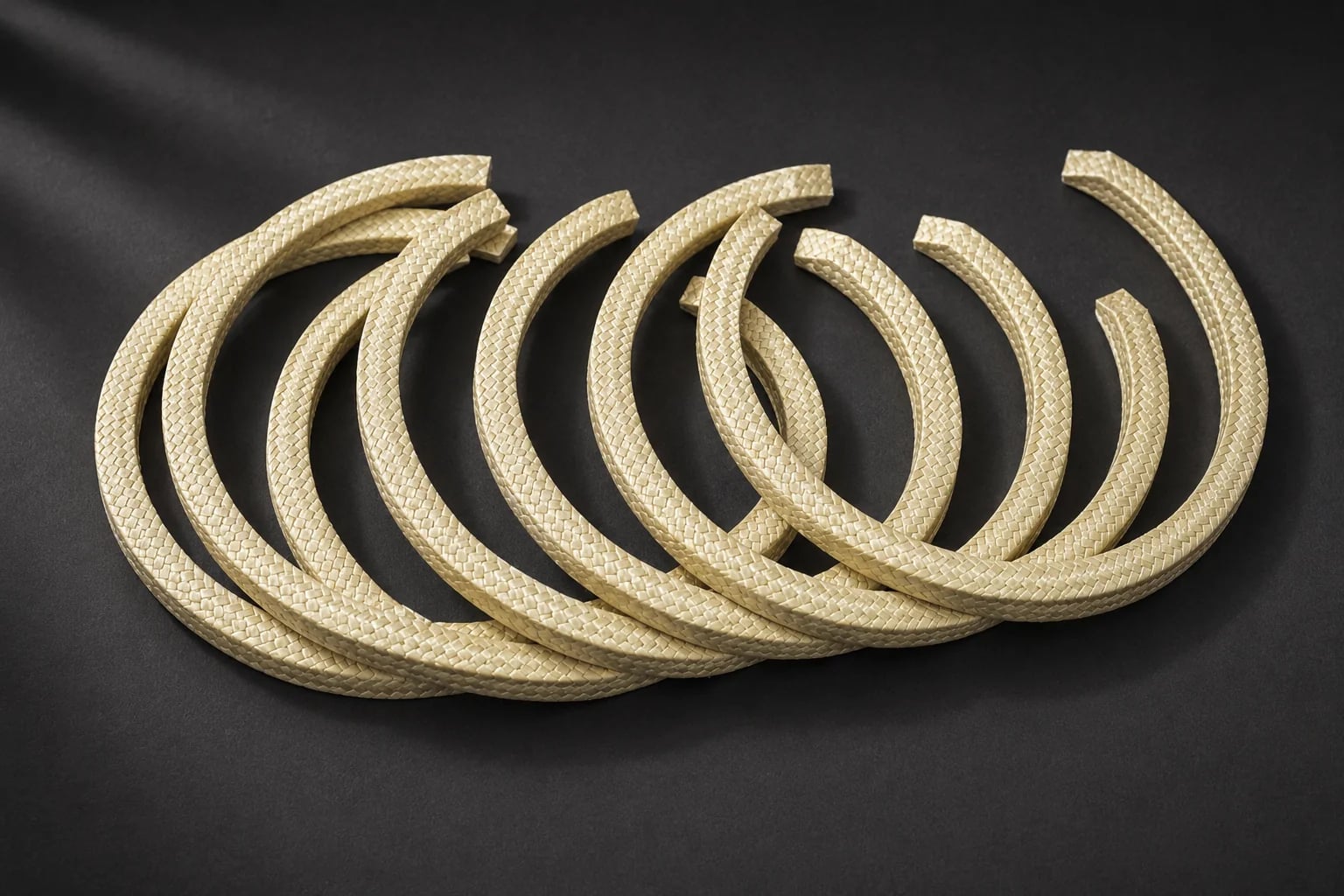

PA 106 offers high-strength polyimide fiber packing for demanding applications requiring exceptional mechanical properties. Engineered to withstand aggressive environments and highly abrasive media.
Quick Specifications
pH Range
0-14
Temperature (°C)
-200 to +300
Pressure (BAR)
500
Size Range
3 mm² to 25 mm²
Technical Data
Specifications
pH Range0-14
Temperature (°C)-200 to +300
Pressure (BAR)500
Size Range3 mm² to 25 mm²
Benefits
Key Features
Exceptional mechanical strength and durability in harsh conditions
Superior temperature resistance up to 300°C for high-temperature services
Excellent chemical resistance across the full pH spectrum
Outstanding dimensional stability under load and pressure
Ideal sealing solution for highly abrasive media applications
Use Cases
Applications
Pumps handling abrasive slurries and corrosive chemicals
Valves in chemical processing and industrial utility systems
Mixers, agitators, and reactors with aggressive process media
Marine and desalination equipment handling brine and seawater
Chemical processing plants and mining operations
Wastewater treatment facilities
Power generation systems
Industrial process fluid sealing applications
This product is also available in an Economical version as PA 106E, offering cost-effective sealing solutions while maintaining reliable performance standards.
This product is also available with an elastomeric core as PA 106EC, designed for rugged and resilient operations in demanding service conditions.
