Product Description

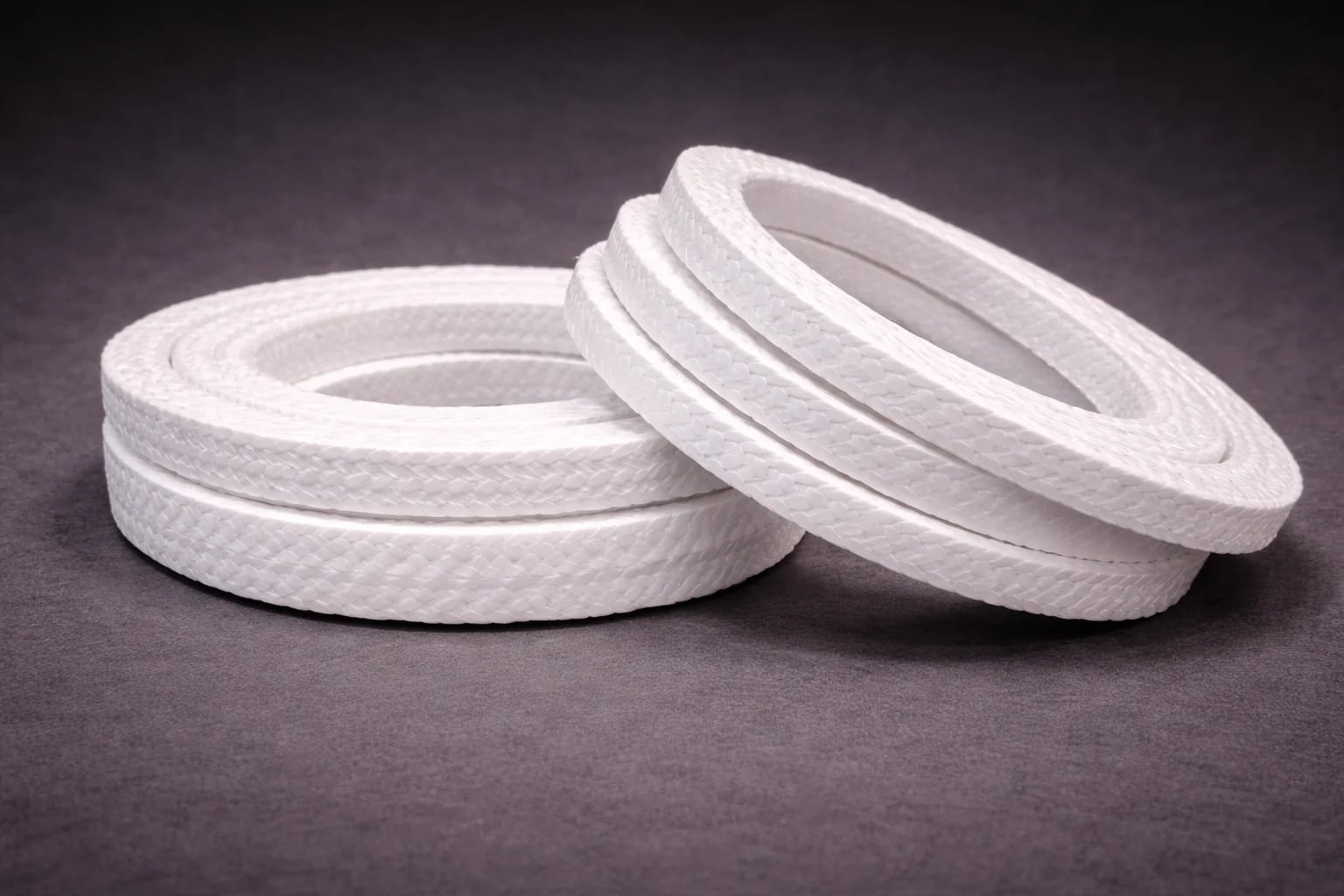

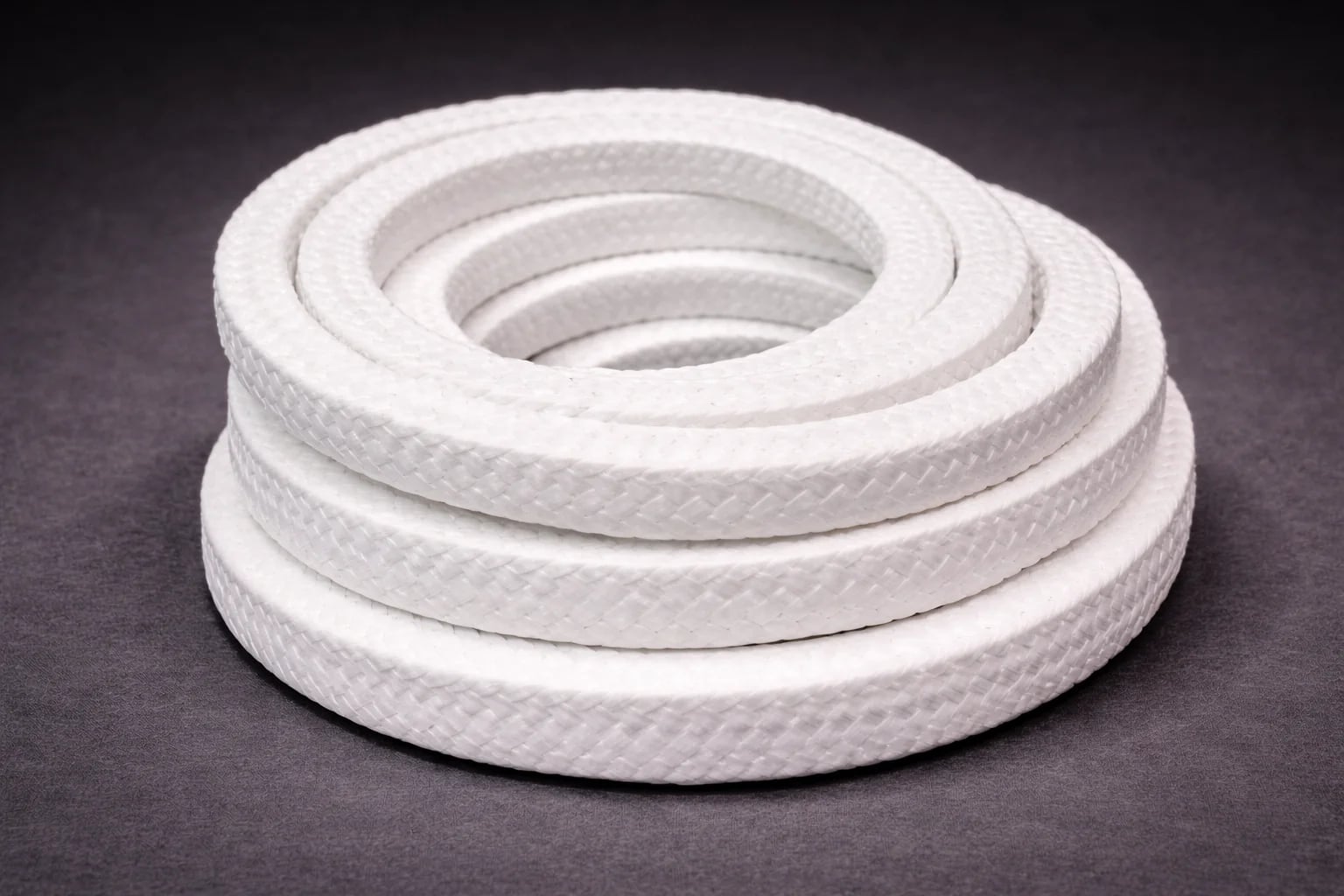

PE 509 delivers superior sealing performance in extreme service conditions utilizing advanced PTFE technology with integrated self-lubrication. Engineered for applications where contamination control is paramount.
Quick Specifications
Material Composition
100% Pure PTFE
pH Range
0 – 14
Temperature Range
-240°C to +260°C
Maximum Pressure
Up to 300 bar
Technical Data
Specifications
Material Composition100% Pure PTFE
pH Range0 – 14
Temperature Range-240°C to +260°C
Maximum PressureUp to 300 bar
Size Range3 mm² to 25 mm²
Chemical CompatibilitySuitable for most industrial chemicals and process media
Friction CharacteristicsLow friction design for reduced wear
Operational CharacteristicsNon-toxic, non-flammable, chemically inert
Application TypeStatic and dynamic sealing applications
Additional Technical Data
Certification● Manufactured under controlled industrial quality standards
Benefits
Key Features
Exceptional chemical resistance in aggressive media environments
Excellent wear resistance ensures extended service life
Minimal break-in period for rapid commissioning
FDA compliant for food and pharmaceutical applications
Use Cases
Applications
General industrial pumps
Valves and control valves
Chemical processing systems
Pharmaceutical and food processing equipment
Water and wastewater treatment systems
Petrochemical and refinery operations
Reactors and process vessels
Clean and sensitive process applications
Equipment handling chemically aggressive media
Static and low-to-medium dynamic sealing systems
Additional Support?
Contact our sales team for pricing, availability, and technical specifications.
