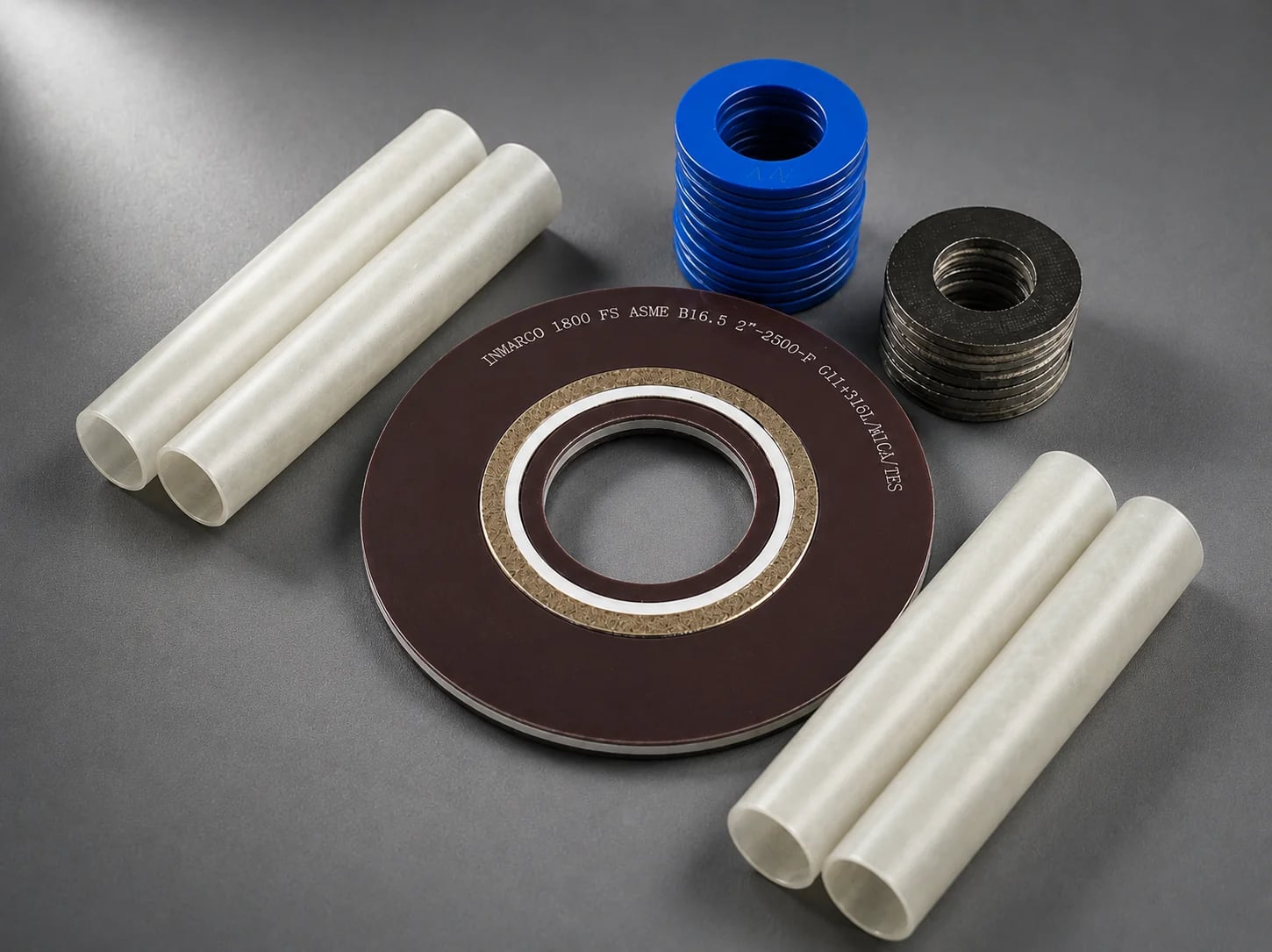

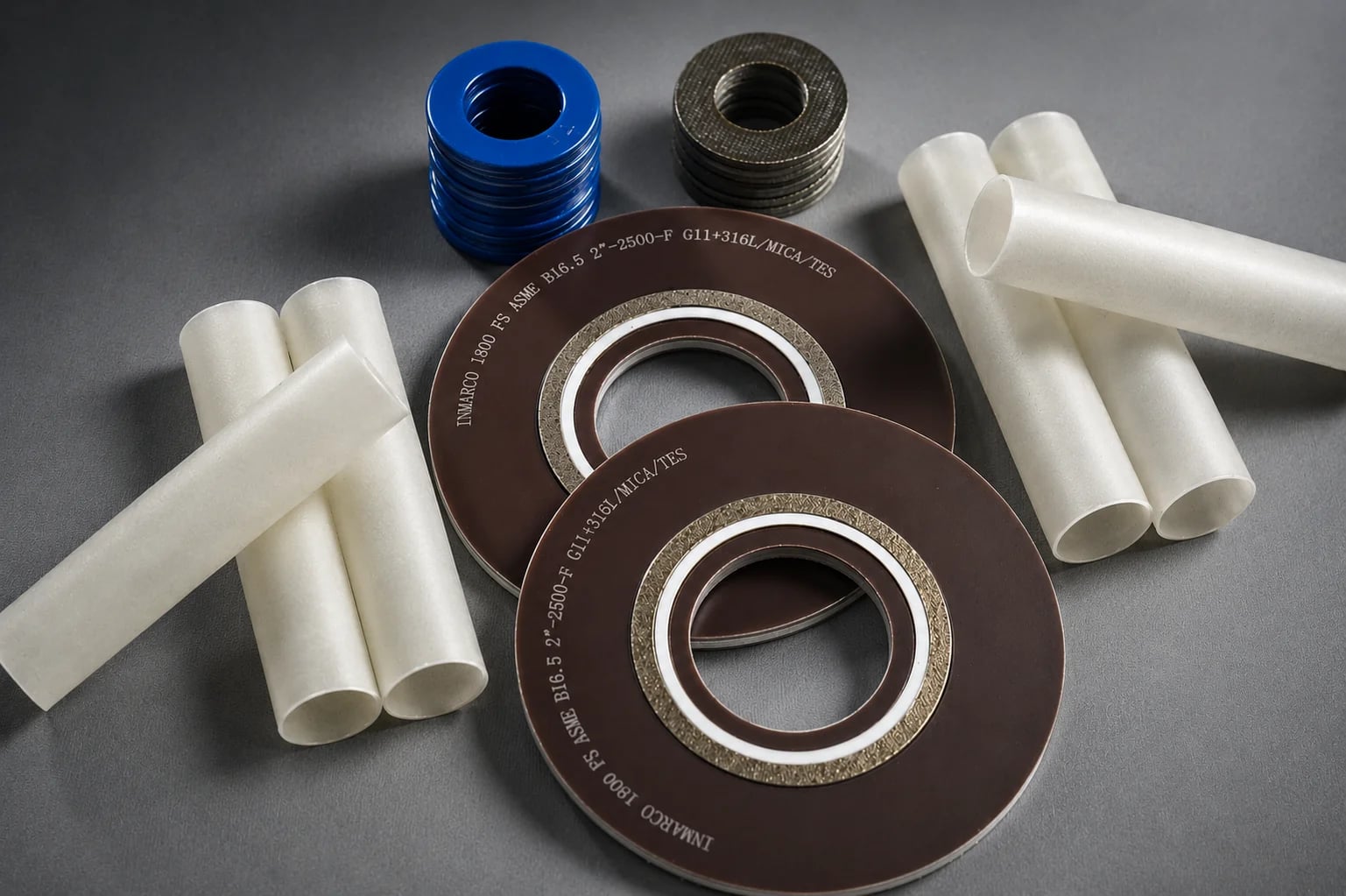

INSULATION GASKET KIT 1800 FS
1 / 3
Product Description
Complete flange isolation gasket kit certified to API 6FB fire-safe standards for cathodic protection and electrical isolation. Engineered to provide reliable electrical isolation while maintaining sealing integrity in fire conditions.
Quick Specifications
pH Range
0 – 14 (full chemical compatibility range)
Temperature Range
-45°C to +200°C
Maximum Pressure
Up to ANSI/ASME Class 2500 (depending on flange and system design)
Carrier Material
NEMA Grade G10/G11 epoxy reinforced composite
Technical Data
Specifications
pH Range0 – 14 (full chemical compatibility range)
Temperature Range-45°C to +200°C
Maximum PressureUp to ANSI/ASME Class 2500 (depending on flange and system design)
Carrier MaterialNEMA Grade G10/G11 epoxy reinforced composite
Core Material Options316L SS, Inconel 625/825, 6Mo, Duplex, other high-performance alloys
Primary SealPTFE seal with internal spring energization
Secondary SealFire-safe sealing element
Electrical IsolationPrevents galvanic corrosion between flange faces
Fire Safety ComplianceAPI 6FB Fire Safe Tested
Application TypeElectrical insulation + flange isolation + sealing system
Additional Technical Data
CertificationAPI 6FB Fire Safe Test Certified
Size Range1/2" to 48" all ANSI classes
Benefits
Key Features
API 6FB fire-safe certified design for critical safety compliance
Complete cathodic protection isolation for corrosion prevention
ASTM B117 salt spray corrosion resistant construction
Methane and helium-nitrogen leak tested for integrity verification
Extended service life in harsh environmental conditions
Use Cases
Applications
Offshore oil & gas platforms
Refineries and petrochemical plants
LNG and gas processing facilities
Chemical processing industries
Pipeline flange isolation systems
Power generation plants
Marine and shipbuilding applications
Process industries requiring galvanic isolation
High-pressure fluid handling systems
Safety-critical flange sealing and isolation points
