Product Description

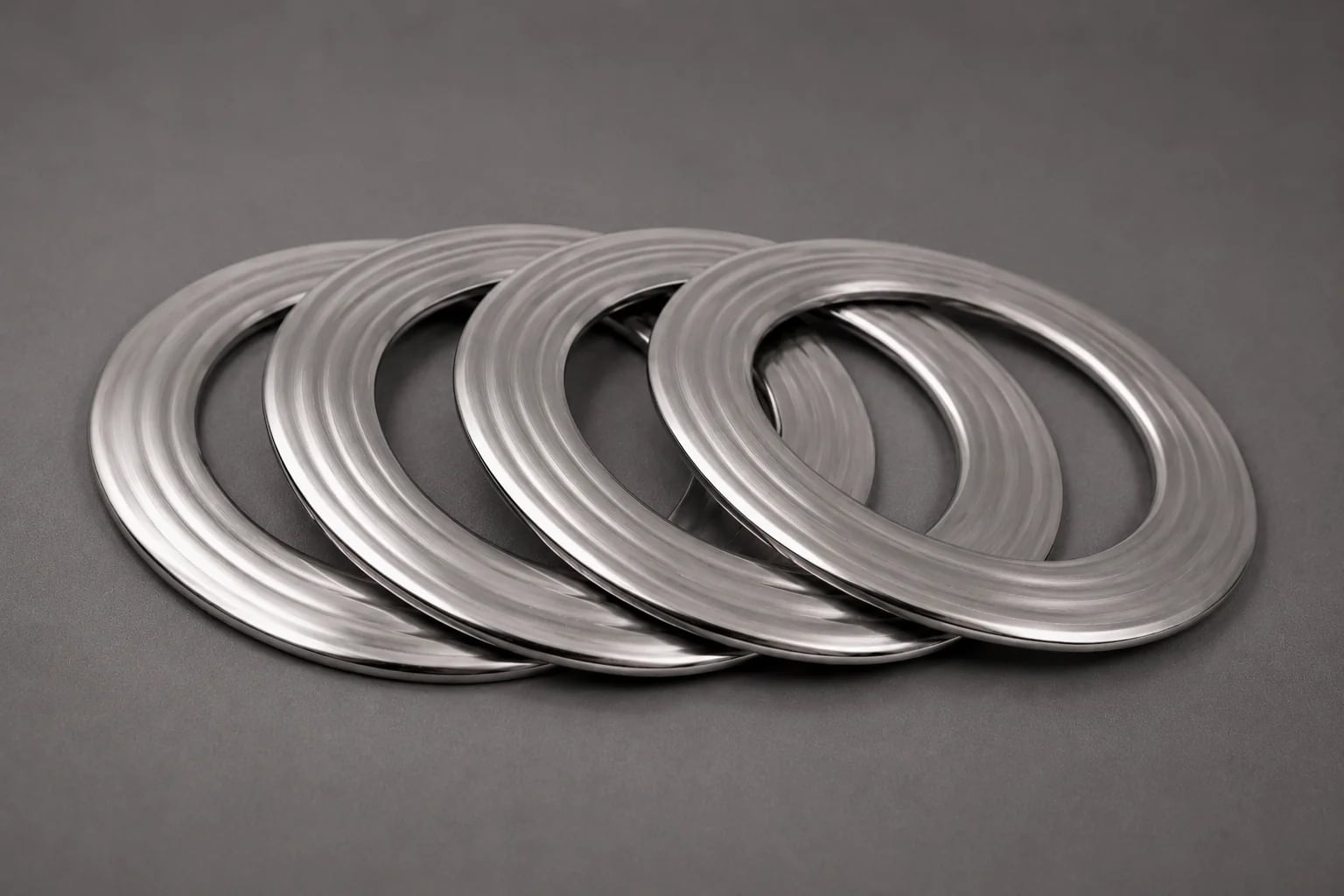

Flexible corrugated metal gaskets providing excellent resilience and adaptability to flange irregularities. Engineered to accommodate flange movement and thermal cycling while maintaining sealing integrity.
Quick Specifications
Operating Temperature
Cryogenic to +550°C*
Maximum Temperature with Special Facing
Up to +1000°C*
Pressure Range
Vacuum to 100 bar*
Gasket Type
Semi-Metallic
Technical Data
Specifications
Operating TemperatureCryogenic to +550°C*
Maximum Temperature with Special FacingUp to +1000°C*
Pressure RangeVacuum to 100 bar*
Gasket TypeSemi-Metallic
Soft Facing Thickness0.5 mm to 3 mm per side
Compliance StandardsASME B16.20, DIN EN 1514-4, API 601
Additional Technical Data
Size Range1/2" to 60" all ANSI/DIN classes
CertificationASME B16.20, DIN EN 1514-6, API 601
Benefits
Key Features
High flexibility and resilience accommodate flange movement
Accommodates thermal expansion and flange misalignment
Low bolt load requirements reduce installation stress
Excellent recovery properties maintain sealing
Suitable for thermal cycling applications
Use Cases
Applications
Heat exchangers
Pressure vessels
Valves and actuators
Process piping systems
Steam lines
Reactor nozzles
Flanged joints
Chemical processing plants
Petrochemical facilities
Oil & gas operations
Refineries
Power generation plants
Additional Support?
Contact our sales team for pricing, availability, and technical specifications.
