Product Description

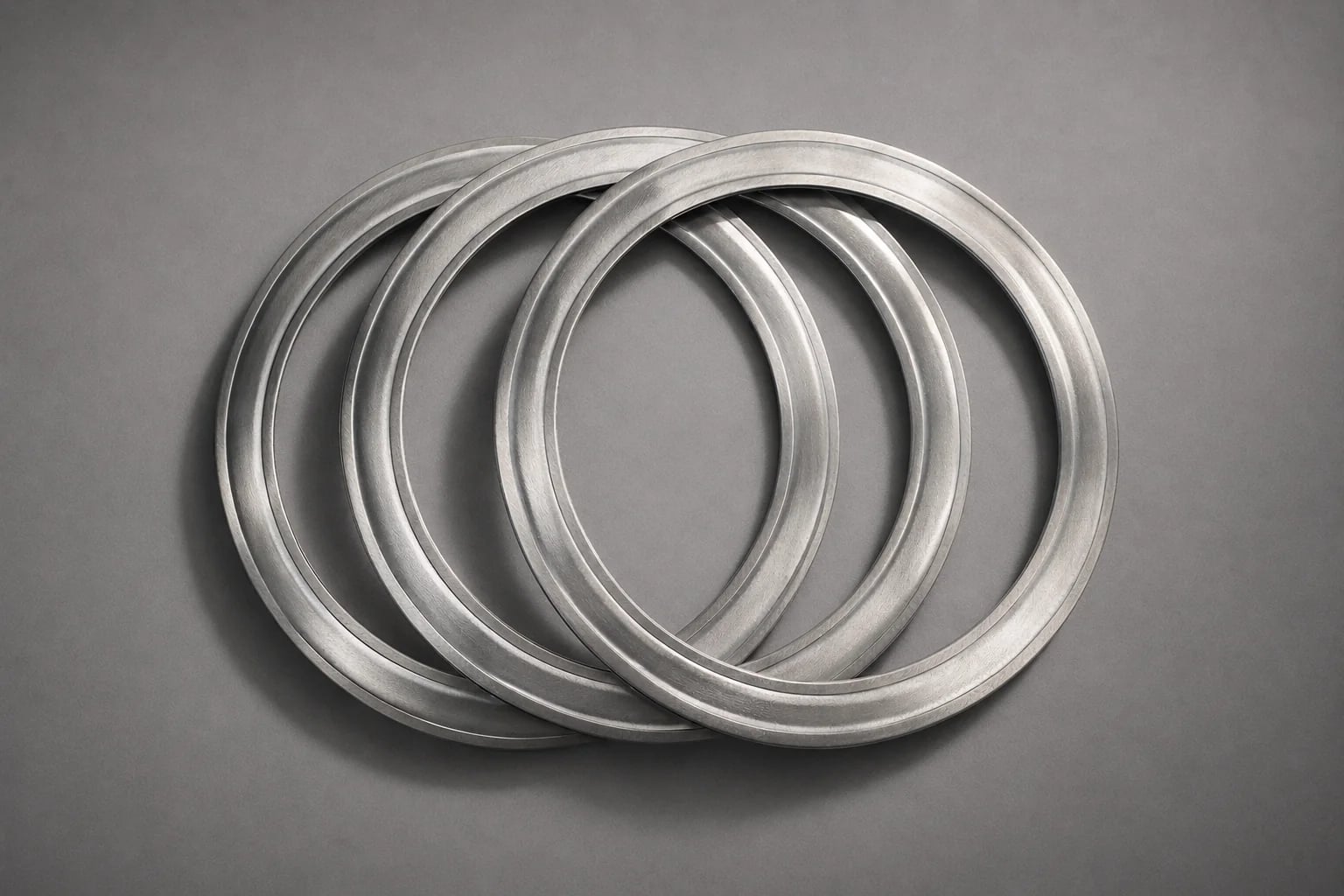

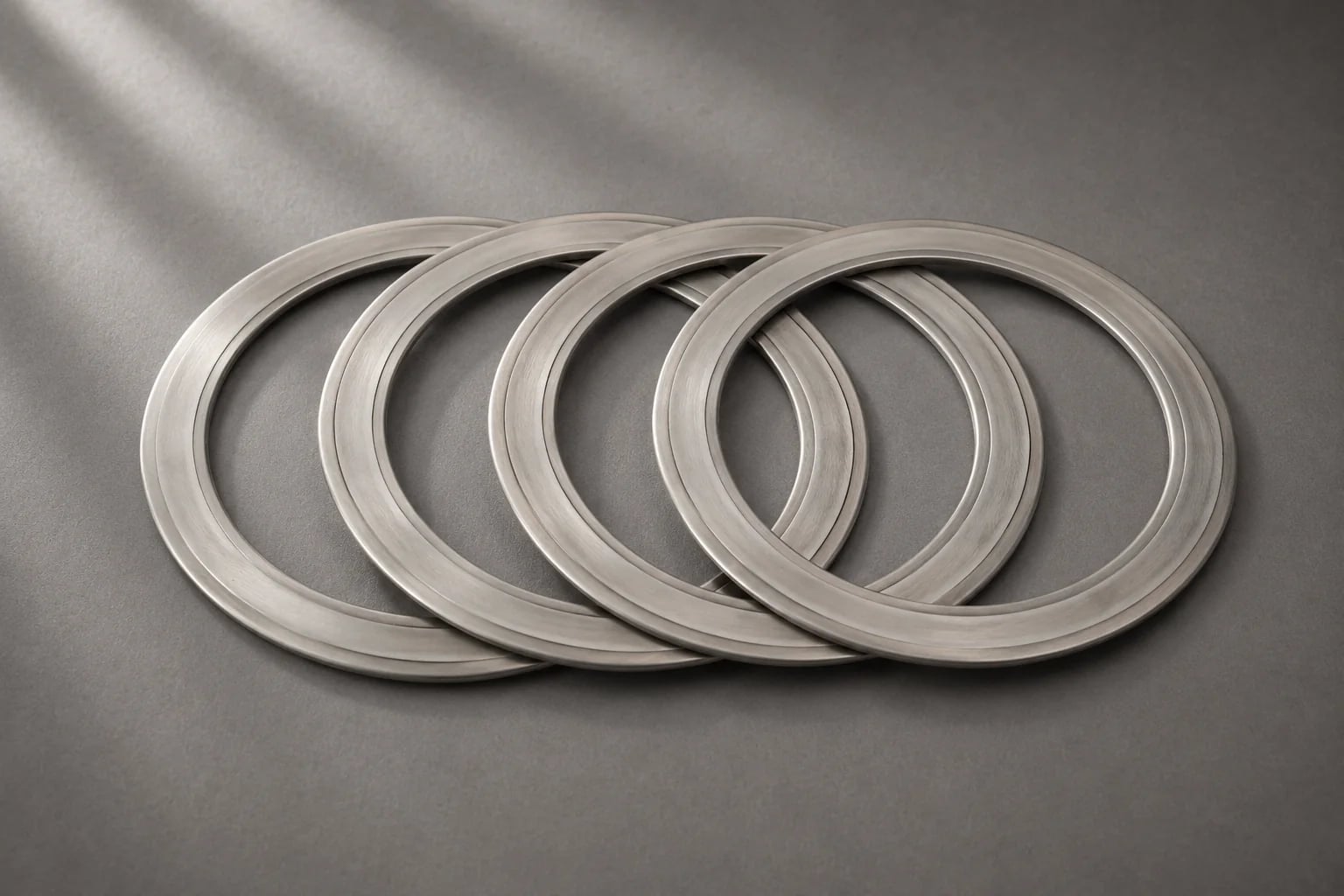

Robust double-jacketed metal gaskets combining the chemical resistance of metal with the conformability of soft filler material. Protects filler from chemical attack while providing excellent sealing.
Quick Specifications
Operating Temperature
-200°C to +550°C*
Pressure Range
Vacuum to 150 bar*
Gasket Type
Semi-Metallic
Flange Surface Compatibility
Rough, uneven, and narrow flange faces
Technical Data
Specifications
Operating Temperature-200°C to +550°C*
Pressure RangeVacuum to 150 bar*
Gasket TypeSemi-Metallic
Flange Surface CompatibilityRough, uneven, and narrow flange faces
Shape OptionsRound, Oval, Elliptical, Oblong, Segmental
Special DesignsRibbed, Partitioned, Corrugated Double Jacketed, Welded Types
Additional Technical Data
Size Range1/2" to 96" all ANSI/DIN classes
CertificationASME B16.20, DIN EN 1514-6, API 601
Benefits
Key Features
Superior chemical resistance from metal jacketing
High-temperature handling capability
Excellent conformability to flange surfaces
Protects filler material from chemical attack
Suitable for damaged or irregular flanges
Use Cases
Applications
Heat exchangers
Pressure vessels
Boilers
Autoclaves
Pumps
Valve bonnets
Blast furnaces
Steam lines
Gas mains
Process piping systems
Petrochemical industry
Oil & gas industry
Chemical processing
Power generation
Food processing
Pharmaceutical manufacturing
General industrial services
Additional Support?
Contact our sales team for pricing, availability, and technical specifications.
