Product Description

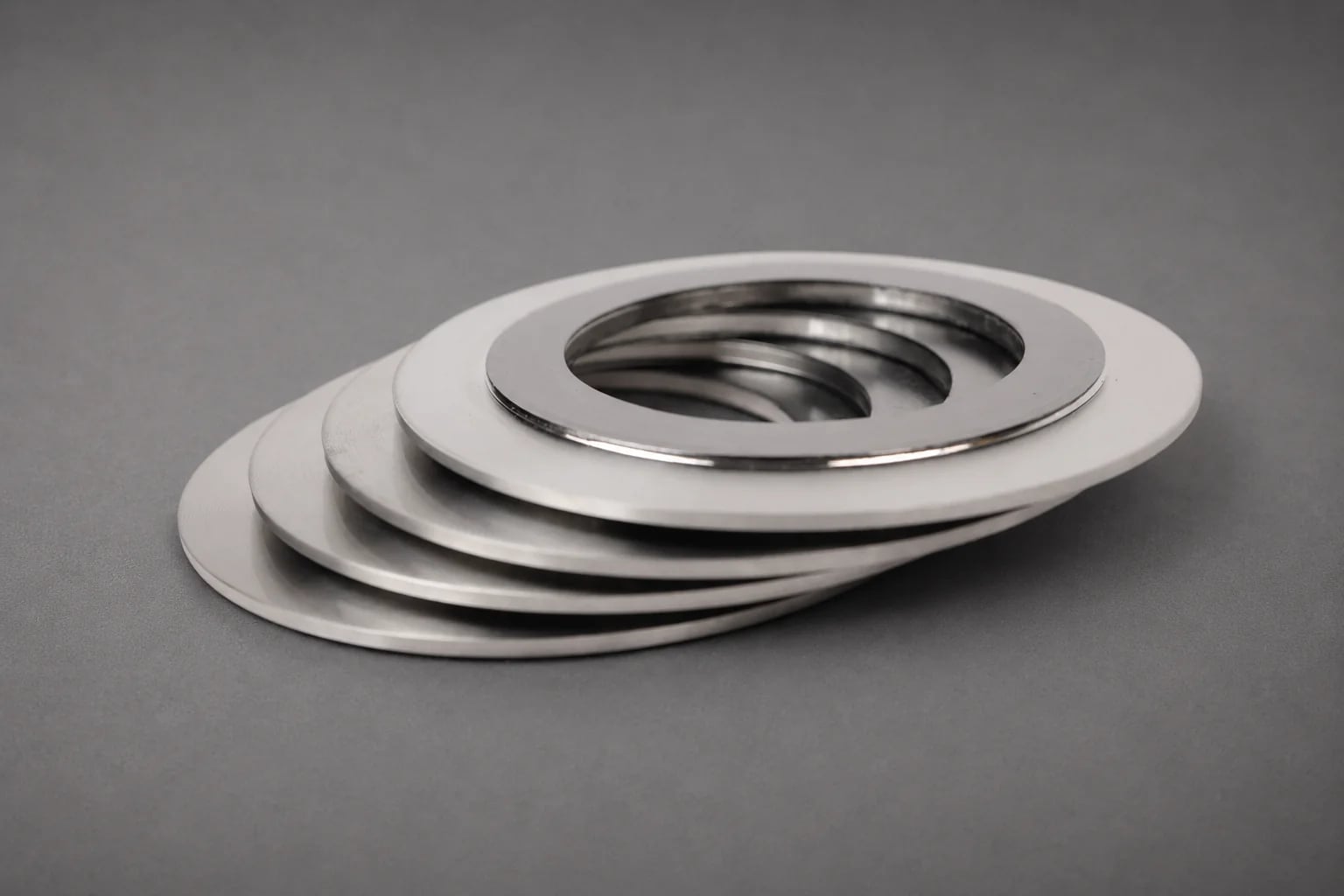

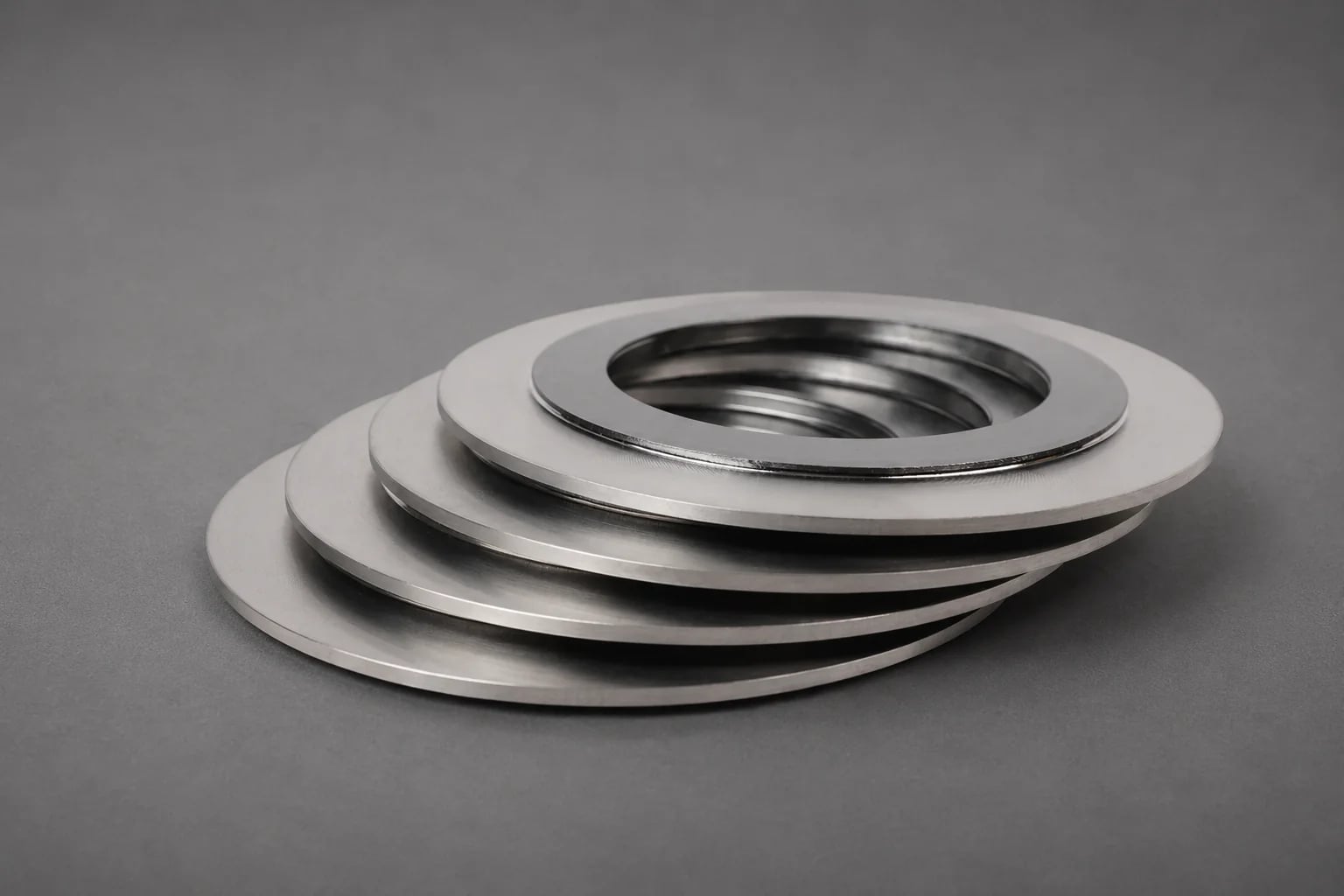

High-performance serrated metal gasket combining the resilience of soft materials with the mechanical strength of metal for demanding applications. Ideal for heat exchangers and high-stress sealing requirements.
Quick Specifications
Pressure Rating
Up to 250 bar (application dependent)
Temperature Range
Cryogenic to +1000°C (depending on facing material)
Facing Materials
Graphite, PTFE, Mica, Specialty Fillers
Core Materials
SS304, SS316, SS321, SS347, Inconel, Monel, Titanium, Copper and Other Alloys
Technical Data
Specifications
Pressure RatingUp to 250 bar (application dependent)
Temperature RangeCryogenic to +1000°C (depending on facing material)
Facing MaterialsGraphite, PTFE, Mica, Specialty Fillers
Core MaterialsSS304, SS316, SS321, SS347, Inconel, Monel, Titanium, Copper and Other Alloys
Flange StandardsASME B16.5, ASME B16.47, EN, DIN, Custom
ReusabilityMetal Core Reusable After Refacing
Blowout ResistanceExcellent
Thermal Cycling ResistanceExcellent
Radial Shear ResistanceExcellent
Additional Technical Data
Size Range1/2" to 120" all ANSI/DIN classes
CertificationASME B16.20, DIN 2697
Benefits
Key Features
Serrated core provides excellent sealing capability
Low bolt load requirements reduce flange stress
Excellent performance in heat exchanger applications
High blowout resistance for safety and reliability
Reusable metal core reduces maintenance costs
Ideal for high-stress sealing applications
Use Cases
Applications
Heat Exchangers
Pressure Vessels
Pumps
Valves
Reactors
Petrochemical Processing Equipment
Refinery Applications
Power Generation Facilities
Nuclear Power Plants
Marine Applications
Chemical Processing Equipment
High-Pressure Piping Systems
Custom Process Equipment
Additional Support?
Contact our sales team for pricing, availability, and technical specifications.
