Product Description

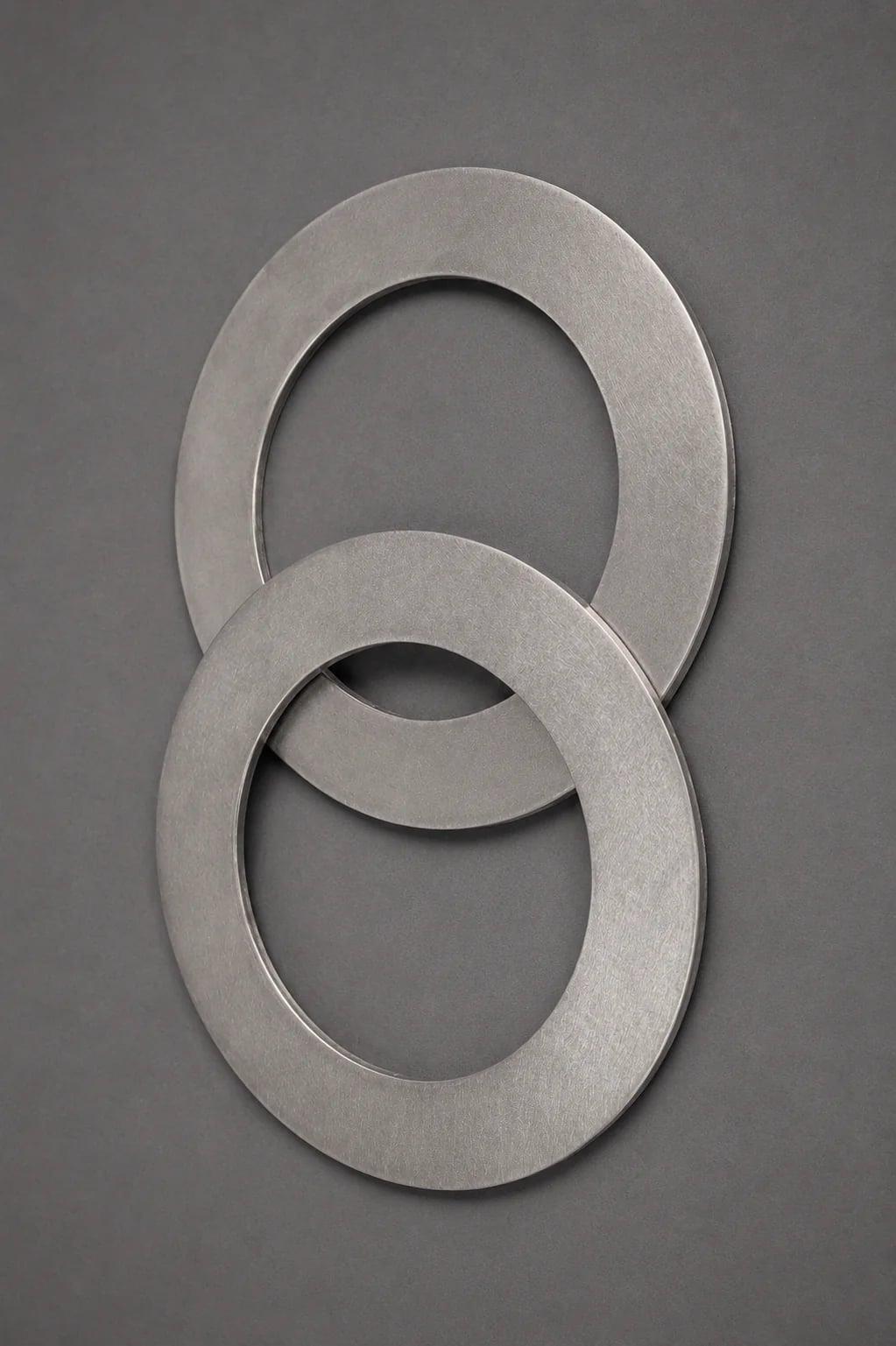

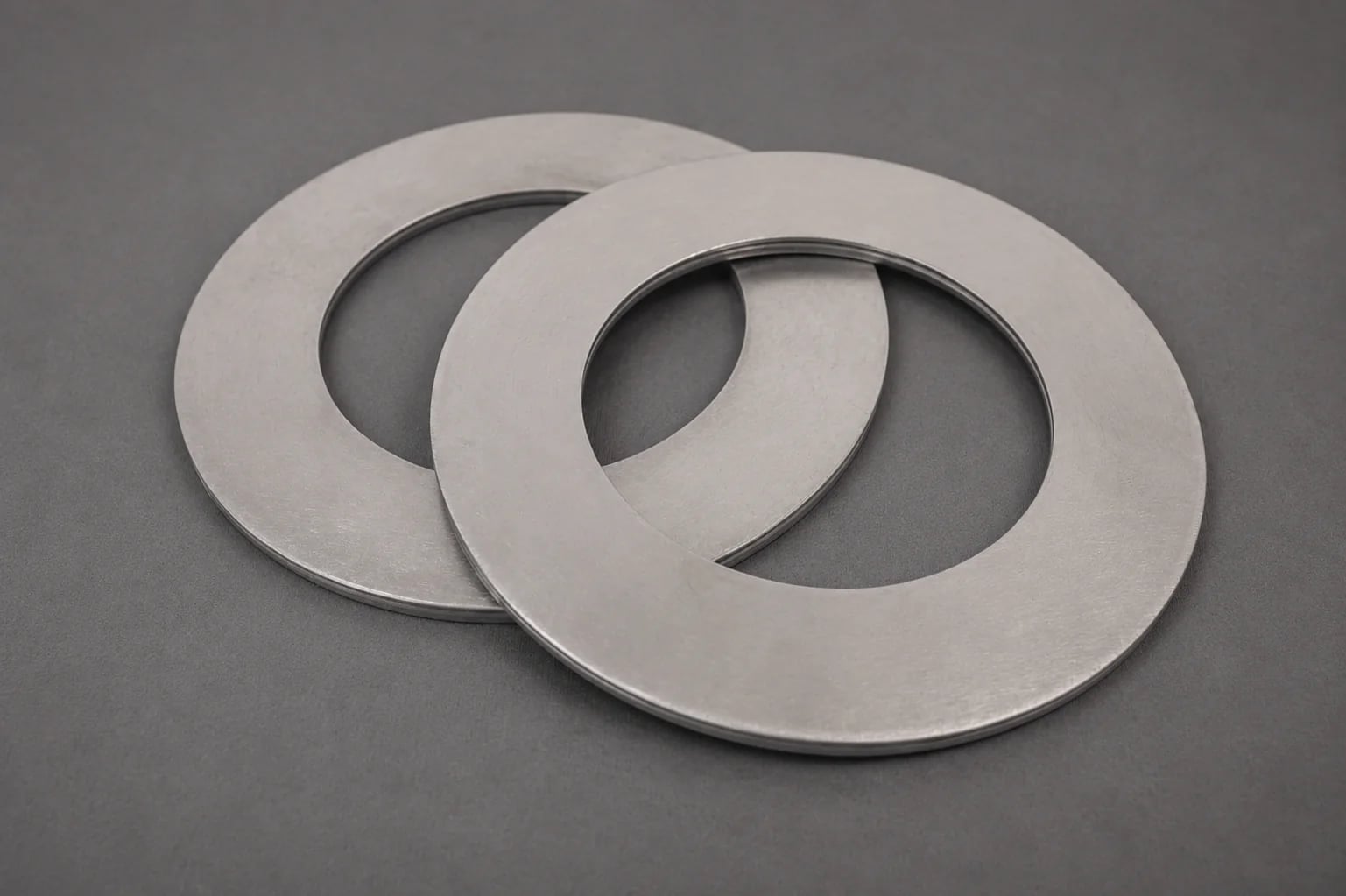

High-performance metallic gasket engineered for extreme temperature and pressure applications with multi-layer construction. Provides exceptional resilience and sealing reliability in thermal cycling conditions.
Quick Specifications
Operating Pressure
Up to 100 Bar (1450 PSI)*
Temperature Range
Cryogenic to +450°C*
Facing Materials
Graphite, PTFE, Mica (Consult Factory)
Core Materials
SS316L, SS304, Inconel®, and Other Alloys
Technical Data
Specifications
Operating PressureUp to 100 Bar (1450 PSI)*
Temperature RangeCryogenic to +450°C*
Facing MaterialsGraphite, PTFE, Mica (Consult Factory)
Core MaterialsSS316L, SS304, Inconel®, and Other Alloys
Standard Sizes75 mm to 1100 mm (3" to 42")
Application TypeValve Seat Sealing
Flow DirectionBidirectional
Cycle LifeDesigned for >10,000 Operating Cycles*
Custom ProfilesAvailable Upon Request
Additional Technical Data
Size Range1/2" to 96" all ANSI/DIN classes
CertificationEngineering Notes:
Benefits
Key Features
Multi-layer construction delivers superior sealing performance
Extreme temperature and pressure handling capability
Excellent resilience and recovery properties
Available in various metallurgies for diverse applications
Suitable for thermal cycling applications
High cycle life with leak-tight performance
Use Cases
Applications
Double Offset Butterfly Valves
Triple Offset Butterfly Valves
High-Integrity Shut-Off Valves
Steam Isolation Valves
Thermal Cycling Valves
