Product Description

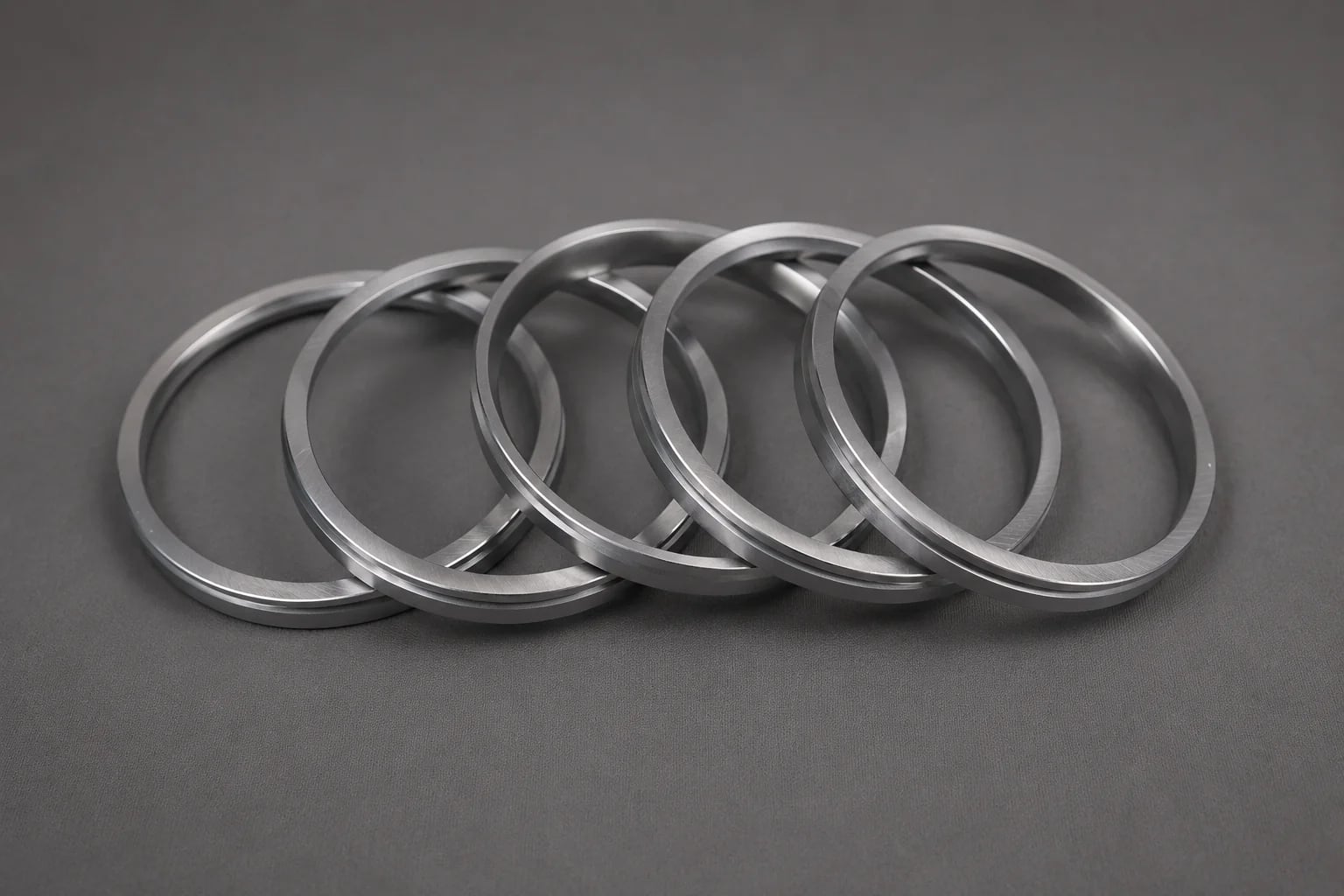

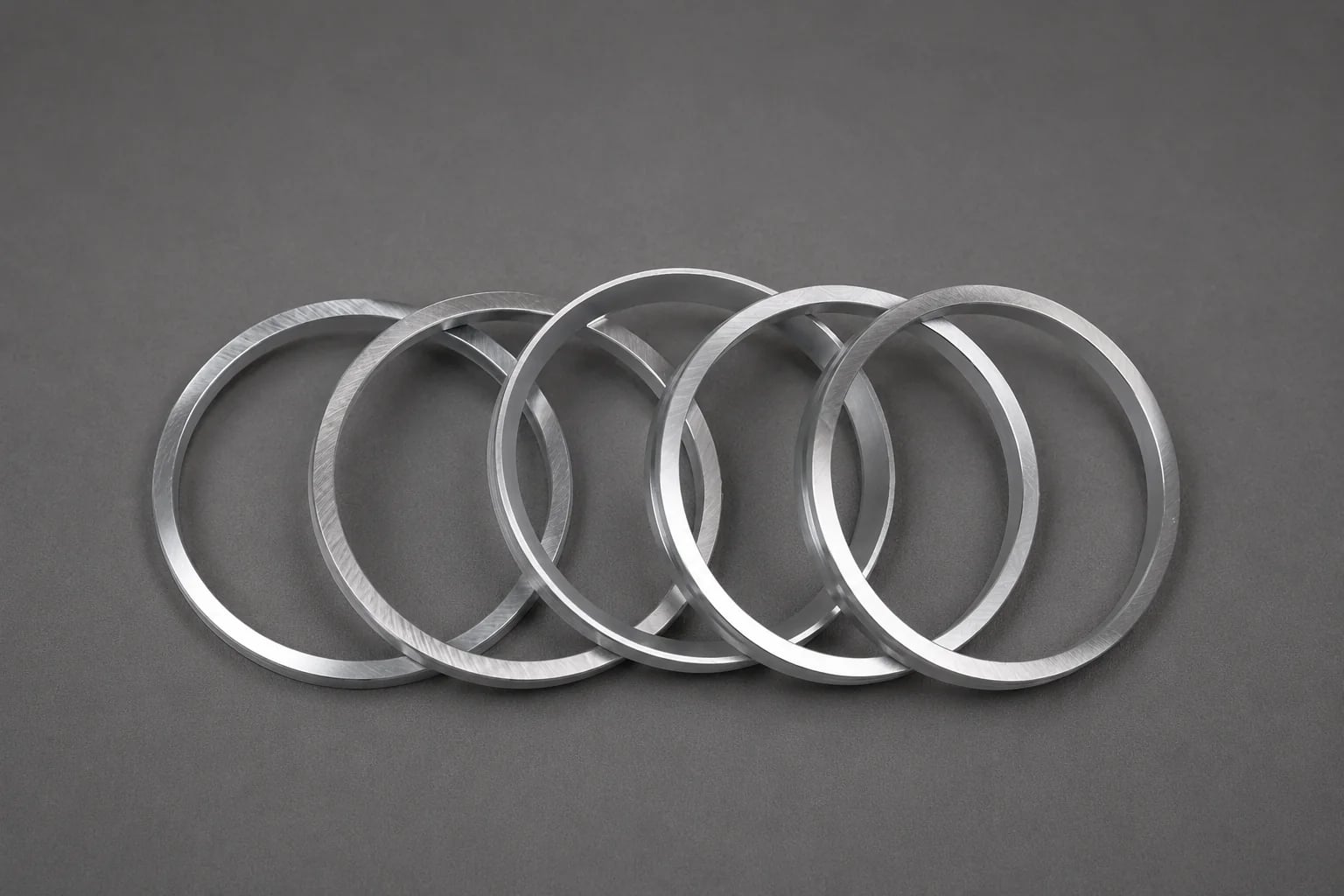

Premium soft iron ring gaskets designed for extreme pressure and temperature applications with excellent conformability. Cost-effective solution specifically engineered for iron flange sealing.
Quick Specifications
Pressure Rating
Up to 450 bar (6,500 psi)*
Temperature Range
-50°C to +600°C*
Material Options
Soft Iron, Carbon Steel, Low Alloy Steel, SS304, SS316, Inconel®
Plating Options
Silver, Nickel, Chrome, Zinc Phosphate
Technical Data
Specifications
Pressure RatingUp to 450 bar (6,500 psi)*
Temperature Range-50°C to +600°C*
Material OptionsSoft Iron, Carbon Steel, Low Alloy Steel, SS304, SS316, Inconel®
Plating OptionsSilver, Nickel, Chrome, Zinc Phosphate
Seal DesignSelf-tightening pressure-activated metallic seal
Typical Sizes2" to 36" (DN50 to DN900)
Applicable StandardsASME B16.34, API 600, API 602, MSS SP-144
Additional Technical Data
CertificationAPI 6A
Benefits
Key Features
Excellent conformability to flange surfaces
High-pressure sealing capability
Cost-effective solution for iron flanges
Good machinability for custom applications
Reliable sealing performance in demanding services
Use Cases
Applications
Pressure seal gate valves
Pressure seal globe valves
High-pressure steam systems
Power generation facilities
Main steam and feedwater systems
Nuclear power plant valves
Refineries and petrochemical plants
Oil & gas production facilities
High-pressure pipelines
Pressure vessels and process equipment
